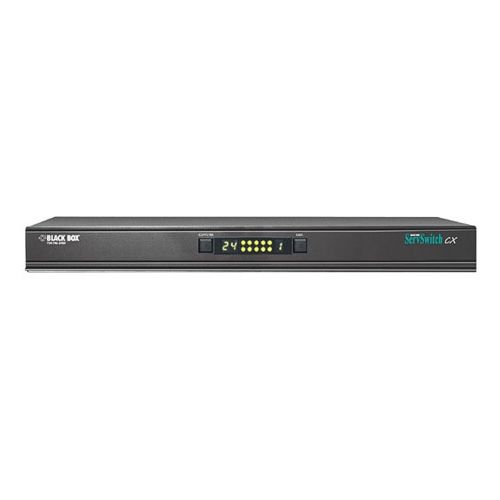

Black Box ServSwitch CX KVM Switch - 24 x 4, 1 - 24 x RJ-45 Keyboard/Mouse/Video - 1U - Rack-mountable - TAA Compliance KV0424A-R2

Black Box ServSwitch CX KVM Switch - 24 x 4, 1 - 24 x RJ-45 Keyboard/Mouse/Video - 1U - Rack-mountable - TAA Compliance

There are no bulky KVM cables to deal with, the ServSwitch CX enables up to four users to connect to the switch via CAT5, CAT5e, or CAT6 UTP cable. In addition, you can mix and match different kinds of servers on the same CX switch! just run CATx cables from the switch''s server ports to the server access modules (SAMs) that connect to your servers. Simply choose the appropriate SAM for each server and you''re all set.

Technical Specifications:
Number of Computers Supported: 24
Number of Local Users Supported: 1
Number of Remote Users Supported: 4
Maximum Operating Distance: 984.20 ft
Graphic Mode: WUXGA
Maximum Video Resolution: 1920 x 1200
PS/2 Port: Yes
USB: Yes
Serial Port: Yes
Number of PS/2 Ports: 2
Number of USB Ports: 2
Input Voltage: 110 V AC, 220 V AC
Form Factor: Rack-mountable, Desktop
Rack Height: 1U
Height: 1.8"
Width: 19"
Depth: 8.5"
Package Contents:

1 x 24 Port CATx KVM Switch, 1 x 5VDC, 6A Power Supply, 1 x DB9 M/F Serial Cable (female has standoffs), 8 x Rubber Feet, 1 x Set of Rackmount Ears for 19-in. mounting and screws

Environmentally Friendly: Yes
Environmental Certification: WEEE, RoHS
Country of Origin: United Kingdom
