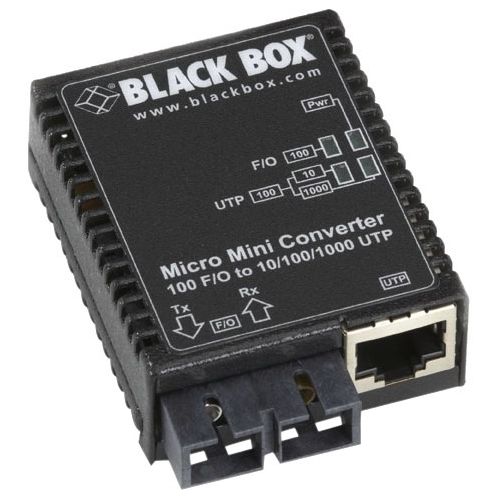

Black Box Micro Mini LMC404A Transceiver/Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - Fast Ethernet, Gigabit Ethernet - 100Base-FX, 10/100/1000Base-TX - Wall Mountable - TAA Compliance LMC404A

Black Box Micro Mini LMC404A Transceiver/Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - Fast Ethernet, Gigabit Ethernet - 100Base-FX, 10/100/1000Base-TX - Wall Mountable - TAA Compliance

The Micro Mini Media Converter is ideal for bringing fiber to the desktop and for mobile applications where light weight, compact size, and low power requirements are critical. Weighing only 2.5 ounces and about the length of a house key, this ultra-compact media converter is portable yet powerful. For extra versatility, it can be USB-powered, making it easy to provide fiber connectivity to locations where AC or DC power is unavailable, for instance, field-deployed fiber-to-the-laptop. For easy portability, this tiny converter conveniently slips into a pocket or laptop carrying case. The converter is plug-and-play with an RJ-45 port that autonegotiates for speed, duplex mode, and crossover functions for PCs with 10BASE-T, 100BASE-TX, and 1000BASE-T Ethernet. On the fiber side, the converter has an SC connector for connection to single-mode fiber. Because it can be powered through a computer''s USB 1.0 or 2.0 port, the Micro Mini Media Converter is ideal for connections to fiber in areas where a spare power outlet may not be available. When plugged into a computer''s USB port, the media converter shuts down automatically when you turn off the computer, which saves energy.

Technical Specifications:
Total Number of Ports: 2
Network (RJ-45): Yes
DVI: No
USB: No
Management Port: No
Number of Network (RJ-45) Ports: 1
Number of SC Ports: 1
SC Port Type: Duplex
Media Type Supported: Optical Fiber, Twisted Pair
Fiber Mode Supported: Single-mode
Fiber Optic Wavelength: 1310 nm
Maximum Distance Supported: 18.64 Mile
Ethernet Technology: Fast Ethernet, Gigabit Ethernet
Network Technology: 100Base-FX, 10/100/1000Base-TX
Power Source: AC Adapter
Form Factor: Wall Mountable
Height: 0.8"
Width: 1.8"
Depth: 2.3"
Weight (Approximate): 2.50 oz
Package Contents:

Micro Mini LMC404A Transceiver/Media Converter, Power Adapter

Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: United States
TAA Compliant: Yes
