Black Box Micro KVM Extender - VGA, USB, Single-Access, CATx - 1 Local User(s) - 1 Remote User(s) - 164 ft Range - 1600 x 1200 Maximum Video Resolution - 3 x Network (RJ-45) - 4 x USB - 1 x VGA - 120 V AC, 230 V AC Input Voltage - TAA Compliant - TAA Comp

Black Box Micro KVM Extender - VGA, USB, Single-Access, CATx - 1 Local User(s) - 1 Remote User(s) - 164 ft Range - 1600 x 1200 Maximum Video Resolution - 3 x Network (RJ-45) - 4 x USB - 1 x VGA - 120 V AC, 230 V AC Input Voltage - TAA Compliant - TAA Compliance

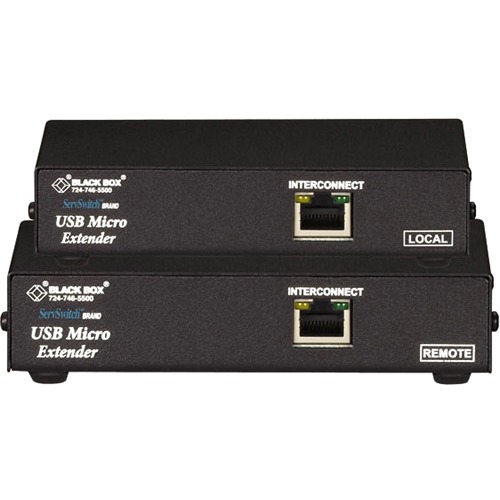

Remote unit includes a built-in 4-port USB hub. Easy plug-and-play installation. The ServSwitch USB Micro Extender Kit, Single-VGA, enables you to place your workstation up to 164 feet (50 m) away from a server with a USB keyboard and mouse console. The extenders transparently send VGA and USB 1.1 signals over CAT5/5e/6 cable. And with up to 1600 x 1200 resolution, you get sharp, clear video, even on large monitors. A 4-port USB hub built into the USB remote unit enables you to connect USB 1.1 devices such as memory sticks and PDAs in addition to the keyboard and mouse.All purposeThe extenders are flash upgradable and provide local passthrough for video signals so you can connect a local VGA monitor for administration.

Technical Specifications:
Connectivity Technology: Wired
Number of Local Users Supported: 1
Number of Remote Users Supported: 1
Maximum Operating Distance: 164 ft
Maximum Video Resolution: 1600 x 1200
Network (RJ-45): Yes
USB: Yes
VGA: Yes
Number of VGA Ports: 1
Number of Network (RJ-45) Ports: 3
Number of USB Ports: 4
Input Voltage: 120 V AC, 240 V AC
Input Voltage Range: 100V AC to 240V AC
Transmitter Height: 1.10"
Transmitter Width: 4.70"
Transmitter Depth: 4.30"
Receiver Height: 1.10"
Receiver Width: 5.40"
Receiver Depth: 3.90"
Package Contents:

Local Unit, Remote Unit, 1 x 9-VDC 1-amp Power Supply Transformer and Output Cord, 1 x Power Supply Input Cord Suitable , 1 x 3-ft. (0.9-m) HD15 to HD video Cable, 1 x 3-ft. (0.9-m) Micro Extender cable (EHN230-0003), 1 x 5-VDC power supply, 1 x 3.3-ft. (1-m) USB/Video Cable with USB connector and VGA video (HD15 M-F), User's Guide

Environmentally Friendly: Yes
Environmental Certification: WEEE, RoHS
Country of Origin: United Kingdom
TAA Compliant: Yes
