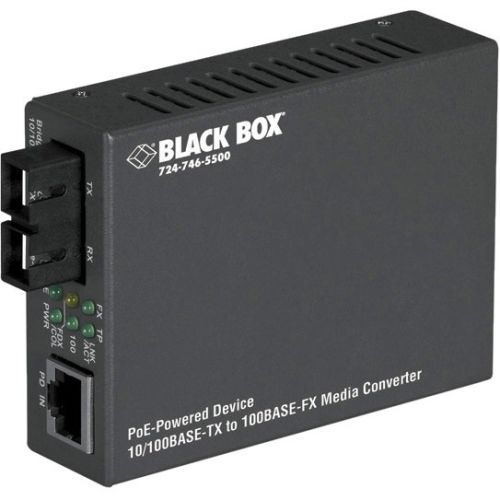

Black Box LPD504A Transceiver/Media Converter - Network (RJ-45) - 1x PoE (RJ-45) Ports - 1 x LC Ports - DuplexLC Port - 10/100Base-TX, 100Base-FX - External - TAA Compliance LPD504A

Black Box LPD504A Transceiver/Media Converter - Network (RJ-45) - 1x PoE (RJ-45) Ports - 1 x LC Ports - DuplexLC Port - 10/100Base-TX, 100Base-FX - External - TAA Compliance

Bridge long-distance Fast Ethernet fiber optic segments with Ethernet or Fast Ethernet copper cabling-all without the need for a local power supply-by using a BLACK BOX® PoE PD Media Converter. Compatible with the 802.3af PoE standard, the converter features an advanced autosensing algorithm that enables it to function as a powered device (PD) and draw its power from PoE power source equipment (PSE) or a PoE injector. With PoE, both data and power are delivered over the spare pairs of an Ethernet data cable to compatible PoE devices-a method of power delivery that''s beneficial in areas where you''re short on AC power outlets. It also eliminates having to run separate AC power wiring to devices at the edge of your far-flung LAN.

Technical Specifications:
Total Number of Ports: 2
Network (RJ-45): Yes
DVI: No
USB: No
Parallel Port: No
Digital Audio: No
Digital Audio/Video: No
Management Port: No
Number of PoE (RJ-45) Ports: 1
Number of LC Ports: 1
LC Port Type: Duplex
Media Type Supported: Twisted Pair, Optical Fiber
Fiber Mode Supported: Multi-mode
Maximum Distance Supported: 1.24 Mile
Ethernet Technology: Ethernet, Fast Ethernet
Network Technology: 10/100Base-TX, 100Base-FX
Input Voltage: 5 V DC
Form Factor: External
Height: 1"
Width: 2.7"
Depth: 3.7"
Certifications & Standards: IEEE 802.3u, IEEE 802.3, IEEE 802.3af, IEEE 802.3x, FCC Part 15 A, CE, TAA Compliant
Environmentally Friendly: Yes
Environmental Certification: WEEE, RoHS
Country of Origin: Taiwan
TAA Compliant: Yes
