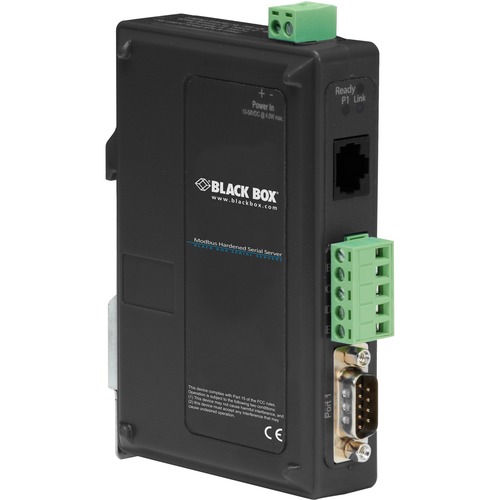

Black Box LES400 Device Server - Twisted Pair - 1 x Network (RJ-45) - 1 x Serial Port - 10/100Base-TX - Fast Ethernet - DIN Rail Mountable - TAA Compliant - TAA Compliance LES431A

Black Box LES400 Device Server - Twisted Pair - 1 x Network (RJ-45) - 1 x Serial Port - 10/100Base-TX - Fast Ethernet - DIN Rail Mountable - TAA Compliant - TAA Compliance

UL® Listed for use in Class 1 Division 2 hazardous areas. NEMA TS-2 rated for use in transportation applications. Routes Modbus traffic based on Modbus ID, and remaps conflicting Modbus IDs. Offers Modbus messaging priority control, selectable by source or function code. Features a built-in Web server and easy-to-use management software. Can be easily integrated into most Modbus network configurations. Converts ASCII to RTU as well as ASCII or RTU to Modbus TCP. Features a DB9 port and terminal block for serial connections. Equipped with a 10-/100-Mbps port for TCP connectivity. Boasts high throughput with low latency. Slim IP30 enclosure saves you on DIN rail space. Includes a DIN mounting clip and spring. Easily integrate an older serial Modbus device into your Ethernet Modbus network. This rugged serial server gives you a simple way to migrate to an Ethernet-based industrial control system-without having to replace the older Modbus equipment you''ve already invested in. Translating older and newer protocols, the 1-Port Modbus Hardened Serial Server converts mismatched serial baud rates and settings, enabling the serial Modbus device to become a node on your Ethernet network. Older PLCs can then talk to newer sensors, meters, scales, and other industrial monitoring and automation instruments. Configuration can be done through a direct serial connection or via the network, so you can improve productivity and cut down on the amount of time required to troubleshoot a serial device on a factory floor or in a remote location. Configure devices, upgrade firmware, and more-all this from the comfort of your office. A simple-to-install, user-friendly software application enables programming. No time-consuming setup is required. The software also features Modbus messaging priority control and allows management through mUL®tiple TCP/IP client sessions. The serial server can be configured for TCP client or server operation.A built-in traffic monitor provides instant verification of a successfUL® installation, and you can view the serial server''s operational status in real time. The 1-Port Modbus Hardened Serial Server has a standard DB9 serial port for RS-232 device connections and a removable terminal block for an RS-422 or RS-485 device connection. It also has an autodetecting 10BASE-T/100BASE-TX port for the Ethernet network connection. Either device on either side can be a Modbus master or slave, customizable to your application. A serial master can be configured to control an IP slave, for instance. Also, a serial slave device can be accessed over a LAN or WAN by up to 16 simUL®taneous Modbus TCP masters.

Technical Specifications:
Media Type Supported: Twisted Pair
Ethernet Technology: Fast Ethernet
Network Standard: 10/100Base-TX
Network (RJ-45): Yes
Serial Port: Yes
Number of Network (RJ-45) Ports: 1
Number of Serial Ports: 1
Form Factor: DIN Rail Mountable
Height: 1.2"
Width: 3.2"
Depth: 4.7"
Weight (Approximate): 4.80 oz
Additional Information:

General

Approvals: CE, UL® Class 1 Division 2, NEMA TS-2 rated, Data Rate: 230.4 Kbps, maximum, Operating Temperature: -29 to +176° F (-34 to 80° C), Power: From a separately available power supply: 10-48 VDC (58 VDC max.) on a removable terminal block; Consumption: 4 W (maximum), User Controls: (1) switch for resetting unit, Web Management OS Compatability: Windows® 2000, Windows XP (32-/64-bit), Windows 2003 Server (32-/64-bit), Windows Vista (32-/64-bit), Windows 2008 Server (32-/64-bit), Windows 7 (32-/64-bit)

Product works with:

For -40 to +167° F (-40 to +75° C) environments: External 100-240-VAC Power Adapter, 12-VDC, Hardened (PS003A), For standard, more controlled environments: External 100-240-VAC Power Adapter, 12-VDC (PS012)

Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: United States
TAA Compliant: Yes
