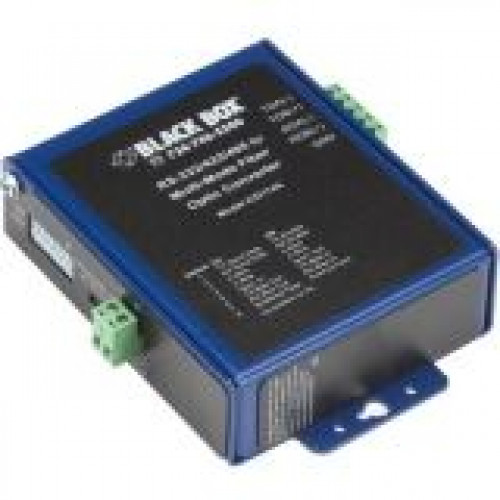

Black Box Industrial Opto-Isolated Serial to Fiber Single-Mode SC Converter - 1 x SC Ports - Rail-mountable - TAA Compliance ICD116A

Black Box Industrial Opto-Isolated Serial to Fiber Single-Mode SC Converter - 1 x SC Ports - Rail-mountable - TAA Compliance

Meets stringent IEC and IEEE specs. Encased in an IP30-rated enclosure, the converter''s been put through some of the most exacting tests in the industry. The high-grade converter meets the requirements of two standards that make it suitable for electrical substation installations-IEC 61850-3 and IEEE 1613-specifications that are more stringent than NEMA TS1/TS2 requirements for transportation applications. Plus, as a fiber-based conversion and extension device, it''s inherently immune to electromagnetic and radio-frequency interference (EMI/RFI) as it uses the optical cable to extend RS-232, RS-422, and RS-485 serial data as far as 15 kilometers (9.3 mi.).

Technical Specifications:
Total Number of Ports: 2
Network (RJ-45): No
DVI: No
USB: No
Parallel Port: No
Digital Audio: No
Digital Audio/Video: No
Management Port: No
Number of SC Ports: 1
Media Type Supported: Optical Fiber
Fiber Mode Supported: Single-mode
Maximum Distance Supported: 9.32 Mile
Form Factor: Rail-mountable
Height: 1.3"
Width: 3.7"
Depth: 5.2"
Weight (Approximate): 8 oz
Additional Information:

Power supply not included. Must be ordered separately.

Certifications & Standards: CE
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: United States
TAA Compliant: Yes
