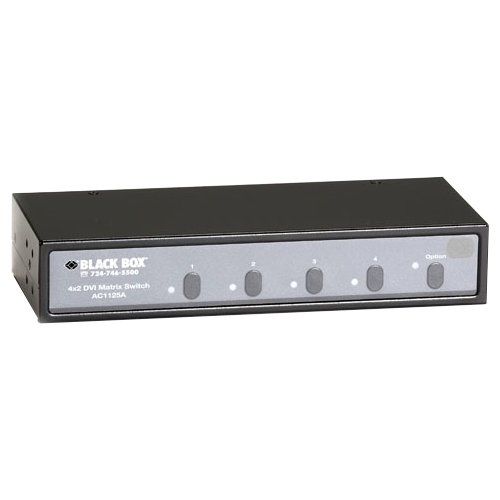

Black Box 4x2 DVI Matrix Switch with Audio and RS-232 Control - 1600 x 1200 - UXGA - 4 x 22 x DVI Out AC1125A

Black Box 4x2 DVI Matrix Switch with Audio and RS-232 Control - 1600 x 1200 - UXGA - 4 x 22 x DVI Out

Routes 4 different DVI and audio signals to 2 different DVI monitors and speakers.Ideal for digital signage display systems where you want to switch source inputs for screen output on various screens.Switch using buttons on the front panel, with a PC connected via its RS-232 port, or by using the wireless remote control from up to 16.4 ft. (5 m) away.

Technical Specifications:
Connectivity Technology: Cable
Number of Input Devices Supported: 4
Device Supported: Display, Speaker, Computer
Number of Displays Supported: 2
Graphics Modes: UXGA
Maximum Video Resolution: 1600 x 1200
DVI In: Yes
DVI Out: Yes
Serial Port: Yes
Audio Line In: Yes
Audio Line Out: Yes
Number of DVI Inputs: 4
Number of DVI Outputs: 2
Input Voltage: 110 V AC, 220 V AC
Form Factor: Rack-mountable
Height: 1.6"
Width: 8.7"
Depth: 3.8"
Weight (Approximate): 1.60 lb
Package Contents: 4x2 DVI Matrix Switch with Audio and RS-232 Control, Remote Control, Power Adapter, AC Cord, User Manual, IR Extension Kit, 1 x Set of Rubber Footpads
Certifications & Standards: CE
Environmentally Friendly: Yes
Environmental Certification: WEEE, RoHS
Country of Origin: Taiwan
