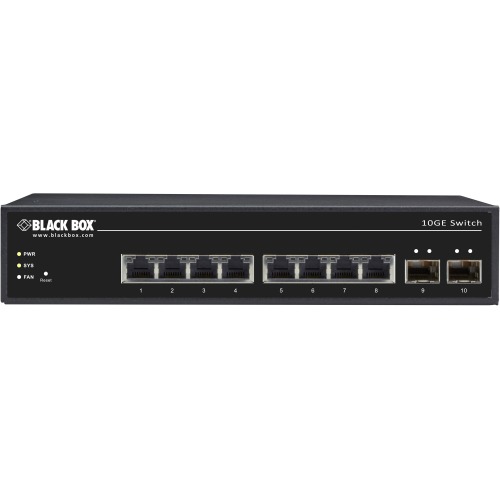

Black Box 10-Port 10 Gigabit Ethernet Switch Web Smart - 8 Ports - Manageable - TAA Compliant - 2 Layer Supported - Modular - Twisted Pair, Optical Fiber - 1U High - Rack-mountable - 1 Year Limited Warranty - TAA Compliance LGB5510A

Black Box 10-Port 10 Gigabit Ethernet Switch Web Smart - 8 Ports - Manageable - TAA Compliant - 2 Layer Supported - Modular - Twisted Pair, Optical Fiber - 1U High - Rack-mountable - 1 Year Limited Warranty - TAA Compliance

Also use for KVM switching and extension. Aggregate Gigabit ports with 10-GbE uplinks. Transmit up to 100 meters over CAT6A cable. Eliminate end-user application latency issues. Flexible. SFP/SFP+ slots enables you to define distances from 500 meters to 10 kilometers. SFP slots also provide reliability and redundancy. User authentication provides secure remote access. Auto-negotiation adjusts network speed depending on the cabling type. Small form factor enables you to put the switch where you need it. Web Smart+ features provide easier management. Support for VLAN and QoS. 802.3az Energy-Efficient Ethernet saves on power costs. Upgrade to 10-Gigabit Ethernet with this Web Smart L2+ switch. You''ll get eight copper RJ-45 ports and two SFP/SFP+ slots. Use this switch in multiple applications and network environments. The dual-uplink slots give you etra reliability and redunancy, as well as extra flexibility. Choose from a number of SFPs depending on the distance you want to go. Multiple network applications.The switch''s small-form factor, only 8.6-inches wide, means you can put it in locations where larger switches won''t fit. In SMB networks, use it as a high-speed core switch. In mid-size networks, use it as an aggregation switch between the core an the network edge. In enterprise networks, use it as an edge switch. In any of these applications, you''ll get true 10-GbE performance that reduces end-user application latency issues. Better yet, the switch auto-negotiates speeds so it''s backwards compatible with an existing Gigabit network. See the big picture.The switch easily handles uncompressed ultra HD video as well as KVM switching and extension over IP. Use it to transmit video in control rooms, conference rooms, lobbies, etc. Go the distance.The switch transmit data up to 100 meters over CAT6A cable. If you use CAT6 cable, you''ll get distances of 45 meters. CAT5e cable can be used for Gigabit Ethernet up to 100 meters. SecureYou''ll get multiple security features. IP Source Guard prevents illegal IP addresses from accessing a specific port. ACLs support up to 256 entries. Storm control prevents traffic on the network from being disrupted by a broadcast, multicast, or unicast storm on a port. Web smart managementThe switch delivers advanced functionality inlcuding STP/RSTP/MSTP, IGMP Snooping, QoS, and more. The integral Web server enables Web-based management via Web browser. This GUI interface enables switch configuration, system dashboard, maintenance, and monitoring. The wide range of management and support features also includes port mirroring, LLDP, sFlow®, UPnP®, IPv6, DHCP Client, SNTP, ping, and syslog. Support for VLAN and QoSSupport for up to four thousand simultaneous VLANs enables you to segment traffic with port-based, 802.1Q tag-based, or MAC-based VLANs. VoIP traffic is automatically assigned to a voice-specific VLAN to maintain quality. 802.1p Layer 2 quality of service (QoS) enables prioritization of time-sensitive applications such as VoIP and video. GreenThe PoE+ Gigabit Managed Switch Eco features IEEE 802.3az energy-efficient Ethernet, which scales down power consumption during periods of low data activity. This feature adds up to energy savings of up to 50%. Cable length detection adjusts signal strength to the cable length, reducing power consumption on shorter cable runs.

Technical Specifications:
Total Number of Network Ports: 8
Uplink Port: Yes
Modular: Yes
Port/Expansion Slot Details: 8 x 10 Gigabit Ethernet Network, 2 x 10 Gigabit Ethernet Expansion Slot
Media Type Supported: Twisted Pair, Optical Fiber
Ethernet Technology: 10 Gigabit Ethernet
Network Technology: 10GBase-X, 10GBase-T
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP+
Shared SFP Slot: No
Number of SFP+ Slots: 2
Layer Supported: 2
Manageable: Yes
Power Source: Power Supply
Redundant Power Supply Supported: No
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7"
Width: 8.6"
Depth: 9.5"
Weight (Approximate): 4.20 lb
Package Contents: Switch , Power cord , Mounting kit , Quick-Start Guide
Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: Taiwan
TAA Compliant: Yes
