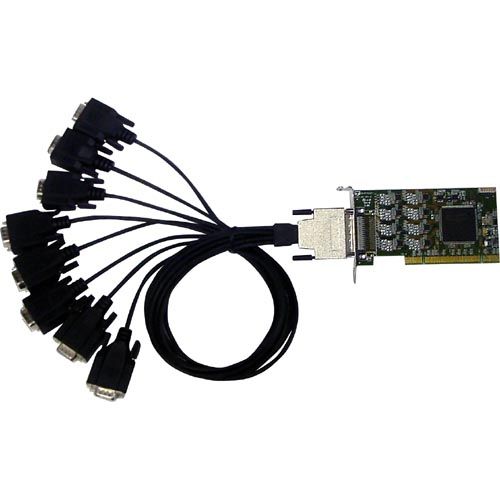

B&B Electronics Mfg. Co QUATECH UPCI 8 Port Low Profile RS-232 DB9 Surge - Universal PCI - 8 x DB-9 Serial Via Cable - Plug-in Card - RoHS Compliance ESCLP-100IND

QUATECH UPCI 8 Port Low Profile RS-232 DB9 Surge - Universal PCI - 8 x DB-9 Serial Via Cable - Plug-in Card - RoHS Compliance

The footprint of the new RS-422/485 and RS-232 Low Profile PCI card was designed to provide greater flexibility for embedded systems, thin-clients, and desktop and server environments. The cards are mechanically similar to standard PCI cards, but use a shorter board and a different mounting bracket.The ideal solution for adding serial connectivity to a wide variety of desktop, server and embedded systems, Quatech Serial PCI and Low Profile Serial Universal PCI cards are the most reliable in the industry.

Technical Specifications:
Host Interface: Universal PCI
Maximum Data Transfer Rate: 7.20 Mbit/s
Platform Supported: PC
Ports Expandability: 8 x DB-9 - Serial, Via Cable (Optional)
Form Factor: Plug-in Card
Environmentally Friendly: Yes
Environmental Certification: RoHS
