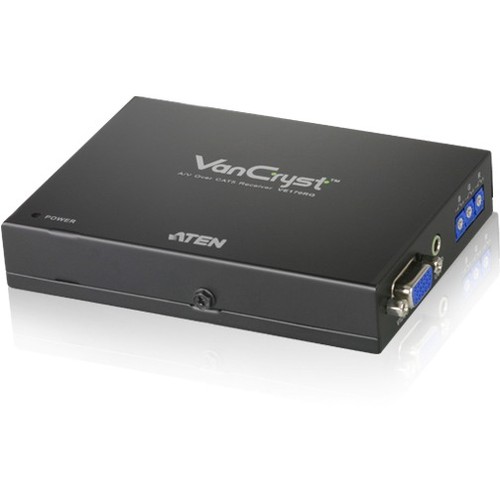

ATEN VE170RQ Video Console-TAA Compliant - 1 Input Device - 1 Output Device - 1000 ft Range - 1 x VGA Out - WUXGA - 1920 x 1200 - Twisted Pair - Category 5e - Rack-mountable VE170RQ

ATEN VE170RQ Video Console-TAA Compliant - 1 Input Device - 1 Output Device - 1000 ft Range - 1 x VGA Out - WUXGA - 1920 x 1200 - Twisted Pair - Category 5e - Rack-mountable

VE170RQ is the long distance receiver of the VE170 series Audio / Video extending system, it connects to a VE170T over standard CAT5e cabling [ sheilded recommended ] to a maximum distance of 1000ft. and a maximum video resolution of 1920x1200 @ 60Hz. To ensure the highest quality of video, the VE170RQ has three manual adjustments to compensate for the time shift between the Red, Green, and Blue color channels that occurs beyond 500 ft.

Warning: This product can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Technical Specifications:
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 1000 ft
Graphics Modes: WUXGA
Maximum Video Resolution: 1920 x 1200
VGA Out: Yes
Number of VGA Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 5e
Input Voltage: 5.3 V DC
Product Material: Metal
Receiver Height: 0.89"
Receiver Width: 3.56"
Receiver Depth: 5.03"
Form Factor: Rack-mountable
Receiver Weight (Approximate): 8.80 oz
Package Contents: VE170RQ Video Console, Power Adapter, Rack Mount Kit, Grounding Wire, User Guide
Country of Origin: Taiwan
