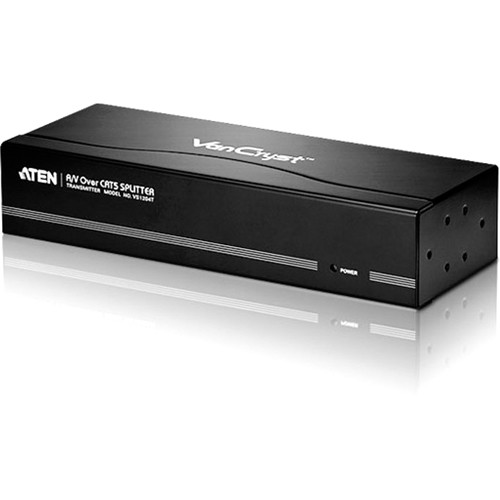

ATEN VanCryst VS1204T Video Extender-TAA Compliant - 1 Input Device - 5 Output Device - 1000 ft Range - 4 x Network (RJ-45) - 1 x VGA In - 1 x VGA Out - WUXGA - 1920 x 1200 - Twisted Pair - Category 5e - Rack-mountable VS1204T

ATEN VanCryst VS1204T Video Extender-TAA Compliant - 1 Input Device - 5 Output Device - 1000 ft Range - 4 x Network (RJ-45) - 1 x VGA In - 1 x VGA Out - WUXGA - 1920 x 1200 - Twisted Pair - Category 5e - Rack-mountable

The VS1204T / VE170 system is a cost-effective, efficient solution for sending high quality audio and video content to as many as four receiving units up to a maximum of 1000 feet from the source.Installation consists of connecting the VS1204T transmitter to your VGA / Audio source then via CAT5e cable to your VE170 receivers.

Warning: This product can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Technical Specifications:
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 5
Maximum Operating Distance: 1000 ft
Graphics Modes: WUXGA
Maximum Video Resolution: 1920 x 1200
Network (RJ-45): Yes
VGA In: Yes
VGA Out: Yes
Number of Network (RJ-45) Ports: 4
Number of VGA Inputs: 1
Number of VGA Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 5e
Input Voltage: 5.3 V DC
Product Material: Metal
Transmitter Height: 1.70"
Transmitter Width: 7.90"
Transmitter Depth: 1.14"
Form Factor: Rack-mountable
Transmitter Weight (Approximate): 1.30 lb
Package Contents: VanCryst VS1204T Video Extender, 1 x Power Adapter, 1 x Rack Mount Kit, 1 x Foot Pad Set, 1 x Grounding Wire, 1 x User Guide
