ATEN HDMI HDBaseT-Lite Extender (HDBaseT Class B)-TAA Compliant - 1 Input Device - 1 Output Device - 70.87" Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Rack-mountable VE801

ATEN HDMI HDBaseT-Lite Extender (HDBaseT Class B)-TAA Compliant - 1 Input Device - 1 Output Device - 70.87" Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Rack-mountable VE801
Brand: ATEN
Part Number: VE801
MSRP: $237.99
Availability: 10 or more
Condition: New
Price: $198.08
Qty:     - OR -   Add to Wish List
Add to Compare
ATEN HDMI HDBaseT-Lite Extender (HDBaseT Class B)-TAA Compliant - 1 Input Device - 1 Output Device - 70.87" Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Rack-mountable

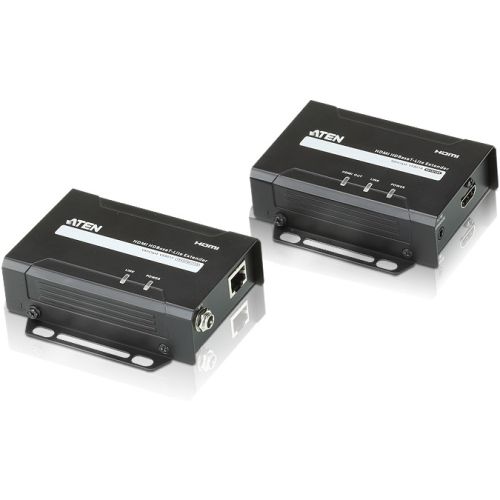

The VE801 HDMI HDBaseT-Lite Extender extends an HDBaseT signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801 all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801 is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances. More from the Manufacturer


Warning: This product can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Technical Specifications:
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 70.87"
Graphics Modes: 4K
Maximum Video Resolution: 4096 x 2160
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
Number of Network (RJ-45) Ports: 2
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6a
Input Voltage: 5 V DC
Product Material: Metal
Transmitter Height: 1.18"
Transmitter Width: 3.43"
Transmitter Depth: 4.06"
Form Factor: Rack-mountable
Transmitter Weight (Approximate): 1.08 lb
Package Contents: 1 x VE801T HDMI HDBaseT-Lite Extender, 1 x VE801R HDMI HDBaseT-Lite Extender, 2 x Power Adapters, 1 x User Instructions
Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: Taiwan
