ATEN HDMI Over Cat 5 Extender Wall Plate-TAA Compliant - 1 Input Device - 1 Output Device - 196.85 ft Range - 4 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - Full HD - 1920 x 1080 - Wall Mountable - RoHS, WEEE Compliance VE806

ATEN HDMI Over Cat 5 Extender Wall Plate-TAA Compliant - 1 Input Device - 1 Output Device - 196.85 ft Range - 4 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - Full HD - 1920 x 1080 - Wall Mountable - RoHS, WEEE Compliance

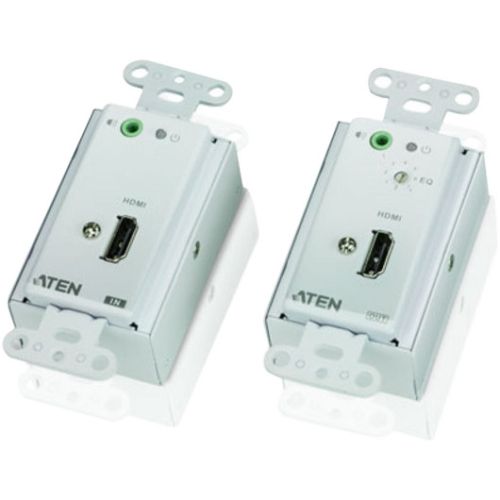

The VE806 HDMI Over Cat 5 Extender Wall Plate extends HDMI and audio signals up to 60m using Cat 5e cable. It supports popular wide screen formats and ensures excellent video quality over long distance transmissions. The VE806 combination can further extend the distance or multiply sources/displays. The VE806 can be powered at either the Transmitter or Receiver side, and uses a second Cat 5e cable to transmit the power signal. The VE806''s compact wall plate design does away with bulky cables and allows a neat and convenient installation. It is an ideal solution for function rooms, museums and any environment that requires equipment or cabling to be kept hidden from public view. More from the Manufacturer

Warning: This product can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Technical Specifications:
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 196.85 ft
Graphics Modes: Full HD
Maximum Video Resolution: 1920 x 1080
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
Number of Network (RJ-45) Ports: 4
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 5e
Input Voltage: 9 V DC
Product Material: Metal
Transmitter Height: 1.57"
Transmitter Width: 1.73"
Length: 4.1"
Form Factor: Wall Mountable
Transmitter Weight (Approximate): 6 oz
Package Contents: 1 x VE806T HDMI Over Cat 5 Extender Wall Plate, 1 x VE806R HDMI Over Cat 5 Extender Wall Plate, 1 x Terminal Block Connector, 1 x Power Adapter, 1 x User Instructions
Environmentally Friendly: Yes
Environmental Certification: WEEE, RoHS
Country of Origin: Taiwan
