ATEN 1U Ultra Short Depth Single Rail WideScreen LCD Console (USB / VGA) - 1 Computer(s) - 18.5" LED - 1366 x 768 - 3 x USB - 1 x VGA - 1 - Keyboard - TouchPad - 120 V AC, 230 V AC Input Voltage - 1U High - Metal, Plastic CL3100NX

Aten 1U Ultra Short Depth Single Rail WideScreen LCD Console (USB / VGA) - 1 Computer(s) - 18.5" LED - 1366 x 768 - 3 x USB - 1 x VGA - 1 - Keyboard - TouchPad - 120 V AC, 230 V AC Input Voltage - 1U High - Metal, Plastic

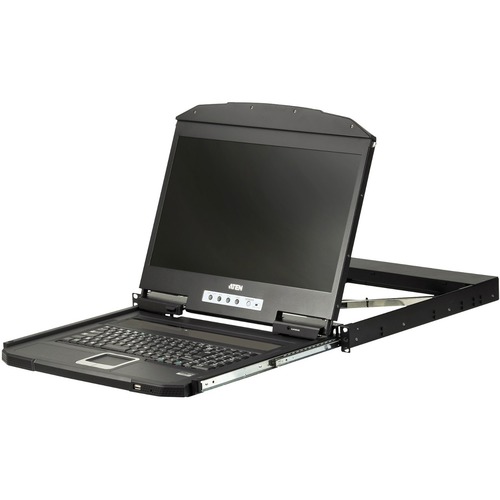

The CL3100 USB VGA LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. The CL3100 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms. The CL3100 is a dedicated front end sliding console for compatible VGA KVM switches. For added convenience, users can choose to manage the computer from an external console. The CL3100 features a port for an external USB mouse on the unit''s front panel, while ports for the second KVM console (USB keyboard/mouse and VGA monitor) are provided on the rear panel. The CL3100 also includes two mini stereo ports for connecting audio speakers. With a rich feature set, the CL3100 is designed to exceed the requirements for space utility optimization, adaptive deployment, and operational versatility, and is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry. More from the Manufacturer

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Technical Specifications:
KVM Switch: No
Number of Computers Supported: 1
Screen Size: 18.5"
Display Screen Type: LED
Screen Resolution: 1366 x 768
Keyboard: Yes
Pointing Device Type: TouchPad
USB: Yes
VGA: Yes
Headphone: Yes
Proprietary Interface: Yes
Number of USB Ports: 3
Number of VGA Ports: 1
Number of Proprietary Ports: 1
Input Voltage: 120 V AC, 230 V AC
Input Voltage Range: 100V AC to 240V AC
Power Consumption: 14.10 W
Product Material: Metal, Plastic
Height: 1.7"
Width: 18.9"
Depth: 18.8"
Weight (Approximate): 20 lb
Package Contents:

CL3100 LCD KVM Console with Standard Rack Mount Kit, 1 x USB VGA KVM Cable (VGA, USB, Audio; 1.8 m/6 ft), 1 x Firmware Upgrade Cable, 1 x Power Cord, 1 x User Instructions

Certifications & Standards:

UL 60950-1 , CAN/CSA

Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: Taiwan
