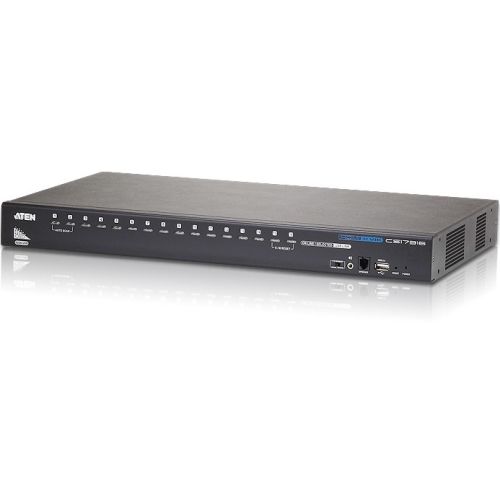

ATEN 16-Port USB HDMI KVM Switch-TAA Compliant - 16 Computer(s) - 1 Local User(s) - 1920 x 1200 - 19 x USB - 17 x HDMI - RoHS, WEEE Compliance CS17916

ATEN 16-Port USB HDMI KVM Switch-TAA Compliant - 16 Computer(s) - 1 Local User(s) - 1920 x 1200 - 19 x USB - 17 x HDMI - RoHS, WEEE Compliance CS17916
Brand: ATEN
Part Number: CS17916
MSRP: $1,384.99
Availability: 10 or more
Condition: New
Price: $1,153.36
Qty:     - OR -   Add to Wish List
Add to Compare
ATEN 16-Port USB HDMI KVM Switch-TAA Compliant - 16 Computer(s) - 1 Local User(s) - 1920 x 1200 - 19 x USB - 17 x HDMI - RoHS, WEEE Compliance

The CS17916 16-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 16 HDMI computers from a single USB keyboard, USB mouse, and monitor console. The CS17916 can be cascaded up to two levels - to control up to 256 computers - all from a single console. In addition the CS17916 features multi-display functionality, which enables the use of standard USB cables to stack up to eight switches in a multi-display installation where each computer is fitted with multiple video cards. It allows you to contrast, analyse and monitor video output in convenient ways, substantially simplifying the working environment. Furthermore, the CS17916 comes with ATEN''s on-screen display (OSD) function, which can access any computer connected to the installation, it also offers OSD configuration backup/restore to save/back up the OSD settings and restore them as needed. The CS17916 provides multimedia keyboard support and is audio enabled. You can listen to the audio output of each computer on two sets of speakers (on a one at- a-time basis). More from the Manufacturer


Warning: This product can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Technical Specifications:
Number of Computers Supported: 16
Number of Local Users Supported: 1
Minimum Scan Interval: 1 Second
Graphic Mode: WUXGA
Maximum Video Resolution: 1920 x 1200
USB: Yes
HDMI: Yes
Headphone: Yes
Microphone: Yes
Number of USB Ports: 19
Number of HDMI Ports: 17
Input Voltage: 5 V DC
Height: 1.7"
Width: 10.1"
Depth: 17.2"
Weight (Approximate): 8.51 lb
Package Contents: 16-Port USB HDMI KVM Switch, Rack Mounting Kit, 2 x Custom USB HDMI KVM Cable Sets (2L7D02UH), 1 x Firmware Upgrade Cable, 1 x Power Adapter, 1 x Foot Pad Set (4 pcs), 1 x Quick Start Guide
Platform Supported: Mac, PC, Linux, Sun
Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: Taiwan
