ATEN 1-Local/Remote Share Access Single Port VGA KVM over IP Switch - 1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 1920 x 1200 - 2 x Network (RJ-45) - 3 x USB2 x VGA - Desktop CN9000

ATEN 1-Local/Remote Share Access Single Port VGA KVM over IP Switch - 1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 1920 x 1200 - 2 x Network (RJ-45) - 3 x USB2 x VGA - Desktop

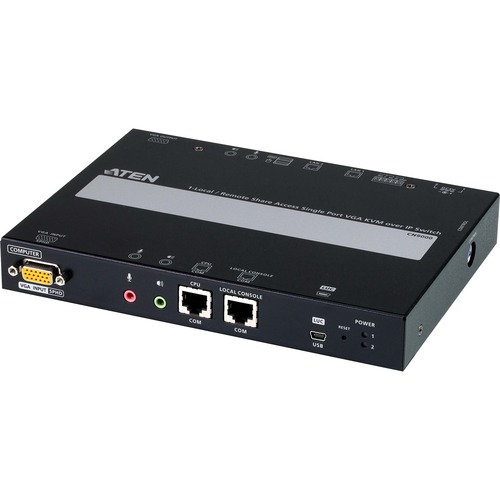

The CN9000 VGA KVM over IP Switch allows remote access and control of the video, audio and virtual media of a PC or workstation, featuring VGA high video resolution up to 1920 x 1200 @ 60Hz at both the local and remote consoles. Equipped with USB and PS/2 (keyboard and mouse) support, CN9000 is compatible not only with modern-day workstations, but also legacy systems and older generation servers. For user-friendly operation, a mini USB port on the front panel is designed as a Laptop USB Console (LUC) port for connection to a laptop, which allows the user to access the PC/server for easy routine maintenance without requiring an additional monitor, keyboard and mouse.To ensure seamless connectivity, the CN9000 is equipped with dual LAN and dual power functionality to keep operation in the server room smooth and efficient. Its power status detection function automatically sends out event notifications when the device becomes offline (e.g. power failure) for device status monitoring. Moreover, the CN9000 features a 5-pin Relay / DI (digital input) terminal block allowing for remote reboot of the local server, and receiving digital inputs from a connected input/alarm device for notification of critical events.For ease of remote management, the CN9000 WebClient Viewer supports remote desktop access without additional software applications. The VGA KVM over IP Switch provides a web-based GUI for remote access and management. With a unified multilanguage interface, it can effectively minimize user training time and increase productivity.

Technical Specifications:
Number of Computers Supported: 1
Number of Local Users Supported: 1
Number of Remote Users Supported: 1
Maximum Video Resolution: 1920 x 1200
Network (RJ-45): Yes
USB: Yes
VGA: Yes
Number of Network (RJ-45) Ports: 2
Number of USB Ports: 3
Number of VGA Ports: 2
Form Factor: Desktop
Height: 1.1"
Width: 0.3"
Depth: 6.1"
Weight (Approximate): 1.90 lb
Package Contents:

1-Local/Remote Share Access Single Port VGA KVM over IP Switch , 1 x KVM Cable (VGA, USB), 1 x USB Cable (USB-A to Mini-USB), 1 x Power Adapter, 1 x Mounting Kit, 1 x Footpad Set, 1 x User Instructions

Country of Origin: Taiwan
