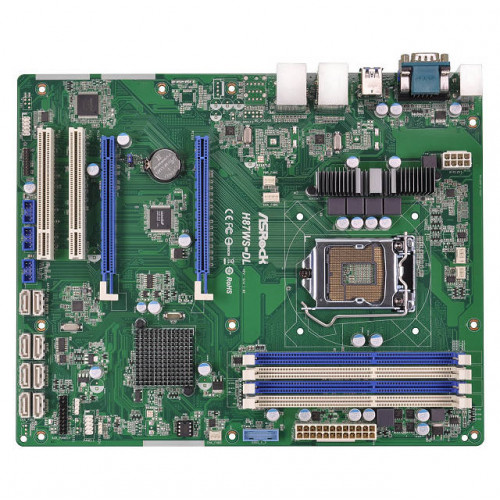

ASRock Rack H87WS-DL LGA1150/ Intel H87/ DDR3/ SATA3&USB3.0/ 2GbE/ ATX Motherboard

Specifications

• Mfr Part Number: H87WS-DL
• CPU: LGA1150
  • Supports Intel Haswell i7/ i5/ i3 Processors
  • 4 Power Phase Design
  • Supports Intel K-Series CPU
  • Supports Intel Turbo Boost 2.0 Technology
  • Supports Hyper-Threading Technology
• Chipset: Intel H87
• Memory: 4x 240pin DDR3-1600/1333 DIMM Slots, Dual Channel, Unbuffered, Max Capacity of 32GB
• Slots: 1x PCI-Express 3.0 x16 Slot, 1x PCI Express 2.0 x16 Slot (runs at x4), 2x PCI Slots
• SATA: 8x SATA3 Ports, Six Support RAID 0, 1, 5, 10
• LAN: 2x Realtek RTL8111E VL Gigabit Ethernet Controllers
• Ports: 4x USB 3.0 Ports (2 rear, 2 via header), 10x USB 2.0 Ports (4 rear, 6 via headers), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x VGA Port, 2x RJ45 LAN Ports
• Power Connector: 1x 24pin ATX Power Connector, 1x 8pin ATX Power Connector
• Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
