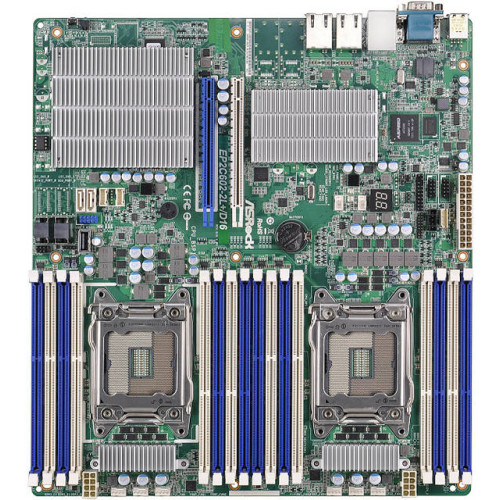

ASRock Rack EP2C602-2L+/D16 Dual LGA2011/ Intel C602/ DDR3/ SATA3/ V&2GbE/ SSI EEB Server Motherboard

Specifications

• Mfr Part Number: EP2C602-2L+/D16
• CPU: Dual LGA2011
  • Support Intel Xeon E5-1600/ 2600/ 4600 & v2 Series Processors (E5-1600 Supports Single Socket)
  • Support Hyper-Threading Technology
  • 5+1 Power Phase Design
• Chipset: Intel C602
• Memory: 16x 240pin DDR3-1600/ 1333/ 1066 DIMM Slots, Quad Channel, Supports up to 512GB REG/Load Reduced Memory or up to 128GB ECC/Non-ECC Unbuffered Memory
• Slots: 2x PCI-Express 3.0 x16 Slots
• SATA: 2x SATA3 Ports, 8x SATA2 Ports (from 2x Mini-SAS 8087 Connectors)
• Video: Aspeed AST2300 Graphics w/ 16MB DDR3 Video Memory
• LAN: Intel i350 Gigabit Ethernet Controller; 1x Realtek RTL8211E for Dedicated Management GLAN
• Ports: 9x USB 2.0 Ports (4 rear, 4 via headers, 1 Type A), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Power Connector: 1x 24pin ATX Power Connector, 2x 8pin ATX Power Connectors
• Form Factor: SSI EEB, 12.0 x 13.0 inch / 30.5 x 26.7 cm
