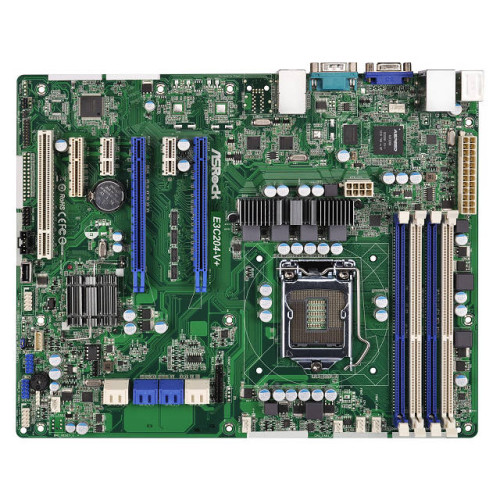

ASRock Rack E3C204-V+ LGA1155/ Intel C204/ DDR3/ SATA3/ V&2GbE/ ATX Motherboard

Specifications

• Mfr Part Number: E3C204-V+
• CPU: LGA1155
  • Supports Intel Xeon E3-1200 & E3-1200 v2 Series Processors
  • Supports 3rd & 2nd Generation Intel Core i3/ Pentium/ Celeron Processors
  • 4 Power Phase Design
  • Supports Hyper-Threading Technology
• Chipset: Intel C204
• Memory: 4x 240pin DDR3-1600/ 1333/ 1066 DIMM Slots, Dual Channel, ECC, Unbuffered, Max Capacity of 32GB
• Slots: 2x PCI-Express 3.0 x16 Slots (run at x16 or x8/x8), 1x PCI-Express 2.0 x4 Slot, 2x PCI-Express 2.0 x1 Slots, 1x PCI Slot
• SATA: 4x SATA3 Ports, Two Support RAID 0, 1, 10, Two Support RAID 0, 1; 4x SATA2 Ports, Support RAID 0, 1, 10
• Video: Aspeed AST1300 Graphics w/ 16MB DDR3 Video Memory
• LAN: 2x Intel 82574L Gigabit Ethernet Controllers
• Ports: 7x USB 2.0 Ports (2 rear, 4 via headers, 1 Type A), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x VGA Port, 2x Serial Ports (1 rear, 1 header), 2x RJ45 LAN Ports
• Power Connector: 1x 24pin ATX Power Connector, 1x 8pin ATX Power Connector
• Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
