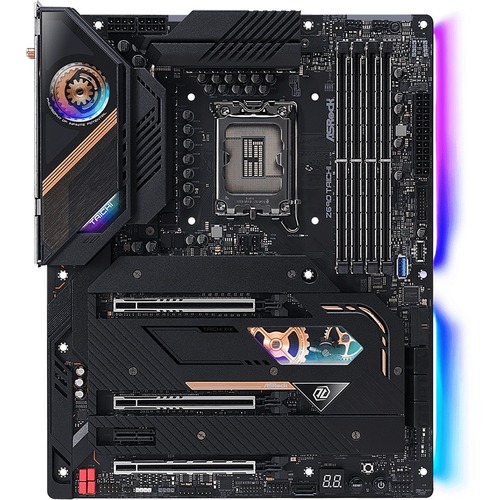

ASRock Z690 Taichi Desktop Motherboard - Intel Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX - Core i5, Core i7, Core i9, Pentium Gold, Celeron, Core i3 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - I

ASRock Z690 Taichi Desktop Motherboard - Intel Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX - Core i5, Core i7, Core i9, Pentium Gold, Celeron, Core i3 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11ax - HDMI - 6 x SATA Interfaces

Supports 12th Gen Intel® Core™ Processors (LGA1700) 20 Phase SPS Dr.MOS Power Design Supports DDR5 6400MHz (OC) 2 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x1 Graphics Output Options: HDMI, 2 Thunderbolt™ Type-C Realtek ALC1220 7.1 CH HD Audio Codec, ESS SABRE 9218 DAC, WIMA Audio Caps 6 SATA3, 1 Independent SATA32 Hyper M.2 (PCIe Gen4 x4)1 M.2 (PCIe Gen3 x2 & SATA3) 2 Thunderbolt™ 4/USB4 Type-C1 USB 3.2 Gen2x2 Front Type-C2 Rear USB 3.2 Gen2 Type A8 USB 3.2 Gen1 (4 Rear, 4 Front)1 Independent USB 3.2 Gen1 Type A Port Killer E3100 2.5G LAN, Intel® Gigabit LAN Killer AX1675 802.11ax (WiFi 6E) + Bluetooth Lightning Gaming Ports ASRock Graphics Card Holder Dr.MOS design features the latest SPS (Smart Power Stage) technology. It''s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.DDR5 Memory with Protection Circuit Reinforced DIMM Slot The reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal, with this superior revolutionary design, it is able to dramatically overclock DRAM module up to insane frequency. DIY Friendly Design Due to the unique electrical architecture of DDR5 DIMM, there''s a high risk of damaging the memory module if AC power isn''t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module. PCIe 5.0 + Surface-Mount TechCompares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards. KiLLER Networking KiLLER E3100 + AX1675 The Killer Ethernet controller is designed specically for competitive gamers and performance-hungry users, this motherboard comes with both Killer E3100 2.5G Ethernet & WiFi 6E solution, the enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications. KiLLER Doubleshot Pro Killer DoubleShot Pro allows the use of both the Killer Wireless and Killer Ethernet interfaces work at the same time which will give the end user max throughput as high as 4.9 Gbps, it automatically utilizes the fastest network connection for high priority traffic, this ensures the highest priority traffic will always be put on the fastest and most reliable link. Benefits Speed: DoubleShot Pro Technology delivers the maximum speed and throughput possible for your computer by allowing your computer to use all of your network adapters at the same time. Intelligence: The Killer Prioritization Engine to automatically classify and prioritize high priority traffic like online games, streaming video, and high quality audio to be handled by the systems fastest network interface. This will provide users with a higher quality experience with fewer interruptions.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: Z690
Total Processor Supported: 1
Processor Socket: Socket LGA-1700
Processor Generation Supported: 12th Gen
Processor Supported: Core i5, Core i7, Core i9, Pentium Gold, Celeron, Core i3
Multi GPU Supported: CrossFire
Number of Memory Slots: 4
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 128 GB
Memory Technology: DDR5 SDRAM
Memory Speed Supported: 6400 MHz, 4400 MHz, 3600 MHz, 6000 MHz, 5200 MHz, 6200 MHz, 5600 MHz
Intel Optane Memory Ready: Yes
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Bluetooth: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11ax
Number of Total Expansion Slots: 4
Total Number of PCI Express Slots: 4
Number of PCI Express x1 Slots: 1
Number of PCI Express x16 Slots: 3
Total Number of USB Ports: 6
Number of USB 3.2 Gen 1 Ports: 4
Number of USB 3.2 Gen 2 Type-A Ports: 2
S/PDIF: Yes
HDMI: Yes
Number of Network (RJ-45) Ports: 2
Number of Thunderbolt 4 Ports: 2
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 4
Total Number of Onboard USB Ports: 9
Number of Onboard USB 2.0 Ports: 3
Number of Onboard USB 3.2 Ports: 6
Product Color: Matte Black
Form Factor: ATX
Width: 12"
Depth: 9.6"
Brand Compatibility: Intel
