ASRock H610M-HDV/M.2 Desktop Motherboard - Intel Chipset - Socket LGA-1700 - Micro ATX - Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - HDM

ASRock H610M-HDV/M.2 Desktop Motherboard - Intel Chipset - Socket LGA-1700 - Micro ATX - Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - HDM
Brand: Asrock, Inc
Part Number: H610M-HDV/M.2
MSRP: $118.99
Availability: 10 or more
Condition: New
Price: $98.70
Qty:     - OR -   Add to Wish List
Add to Compare
ASRock H610M-HDV/M.2 Desktop Motherboard - Intel Chipset - Socket LGA-1700 - Micro ATX - Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces

Supports 12th Gen Intel® Core™ Processors (LGA1700) 6 Phase Power Design Supports DDR4 3200MHz 1 PCIe 4.0 x16, 2 PCIe 3.0 x11 M.2 Key-E for WiFi Graphics Output Options: HDMI, DisplayPort, D-Sub Realtek ALC887/897 7.1 CH HD Audio Codec 4 SATA31 Ultra M.2 (PCIe Gen3 x4 & SATA3) 4 USB 3.2 Gen1 (2 Rear, 2 Front)5 USB 2.0 (2 Rear, 3 Front) Intel® Gigabit LAN Digi Power Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced. Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3) The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules. Intel® Gigabit LAN Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users! M.2 (KEY E) For WiFi Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot. 3 Graphics Outputs Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo. Premium Power Choke Compared to traditional chokes, ASRock''s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. Sapphire Black PCB Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch. High Density Glass Fabric PCB High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. Full Spike Protection Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard''s components from being damaged by these unexpected voltage spikes.


Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: H610
Total Processor Supported: 1
Processor Socket: Socket LGA-1700
Processor Generation Supported: 12th Gen
Processor Supported: Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3
Number of Memory Slots: 2
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 3200 MHz
Controller Type: Serial ATA/600
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 2
Number of USB 3.2 Gen 1 Ports: 2
VGA: Yes
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 5
Number of Onboard USB 2.0 Ports: 3
Number of Onboard USB 3.2 Ports: 2
Product Color: Sapphire Black
Form Factor: Micro ATX
Width: 9.6"
Depth: 7.9"
Package Contents:

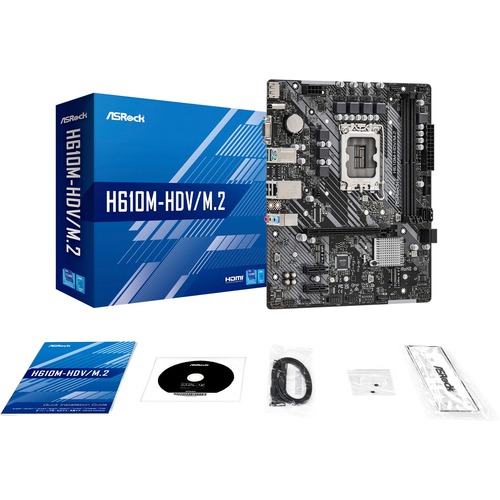

    H610M-HDV/M.2 Desktop Motherboard, Quick Installation Guide, I/O Shield, 2 x SATA Data Cables, 2 x Screws for M.2 Sockets, Support CD
      Drivers, Utilities, AntiVirus Software (Trial Version)

Brand Compatibility: Intel
Environmentally Friendly: Yes
Environmental Certification: ErP/EuP Ready, RoHS, WEEE, China RoHS
