ASRock H610M-HDV Desktop Motherboard - Intel Chipset - Socket LGA-1700 - Micro ATX - Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - HDMI -

ASRock H610M-HDV Desktop Motherboard - Intel Chipset - Socket LGA-1700 - Micro ATX - Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - HDMI -
Brand: Asrock, Inc
Part Number: H610M-HDV
MSRP: $110.99
Availability: 10 or more
Condition: New
Price: $92.23
Qty:     - OR -   Add to Wish List
Add to Compare
ASRock H610M-HDV Desktop Motherboard - Intel Chipset - Socket LGA-1700 - Micro ATX - Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces

Supports 12th Gen Intel® Core™ Processors (LGA1700) 5 Phase Power Design Supports DDR4 3200MHz 1 PCIe 4.0 x16, 1 PCIe 3.0 x1 Graphics Output Options: HDMI, DisplayPort, D-Sub Realtek ALC887/897 7.1 CH HD Audio Codec 4 SATA3 4 USB 3.2 Gen1 (2 Rear, 2 Front)6 USB 2.0 (4 Rear, 2 Front) Realtek Gigabit LAN 3 Graphics Outputs Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo. HDMI 4k @60Hz Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry. Premium Power Choke Compared to traditional chokes, ASRock''s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. Sapphire Black PCB Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch. High Density Glass Fabric PCB High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. Full Spike Protection Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard''s components from being damaged by these unexpected voltage spikes.


Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: H610
Total Processor Supported: 1
Processor Socket: Socket LGA-1700
Processor Generation Supported: 12th Gen
Processor Supported: Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3
Number of Memory Slots: 2
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 3200 MHz
Controller Type: Serial ATA/600
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 2
Total Number of PCI Express Slots: 2
Number of PCI Express x1 Slots: 1
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 4
Number of USB 3.2 Gen 1 Ports: 2
VGA: Yes
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 4
Total Number of Onboard USB Ports: 4
Number of Onboard USB 2.0 Ports: 2
Number of Onboard USB 3.2 Ports: 2
Product Color: Sapphire Black
Form Factor: Micro ATX
Width: 7.8"
Depth: 7.4"
Package Contents:

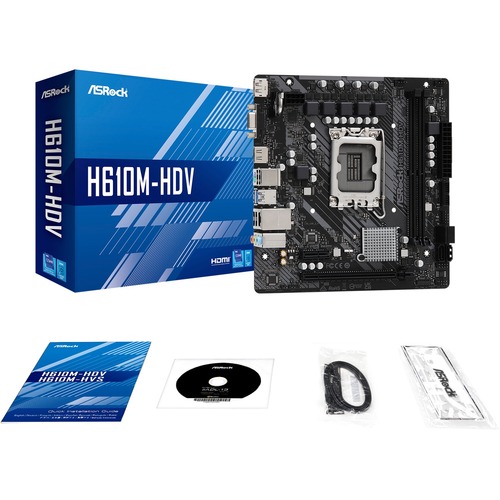

    H610M-HDV Desktop Motherboard, Quick Installation Guide, I/O Shield, 2 x SATA Data Cables, Support CD
      Drivers, Utilities, AntiVirus Software (Trial Version)

Brand Compatibility: Intel
Environmentally Friendly: Yes
Environmental Certification: ErP/EuP Ready, RoHS, WEEE, China RoHS
