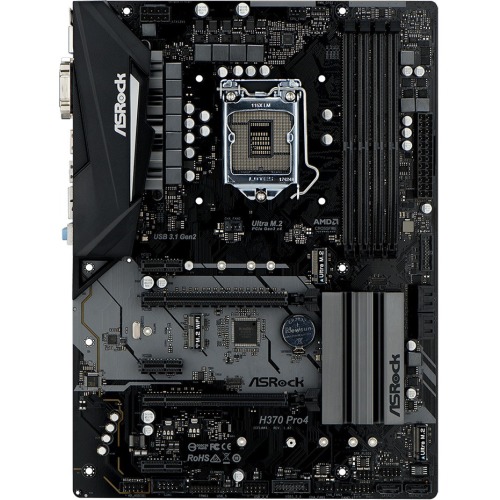

ASRock H370 Pro4 Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151 - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 4 x USB 3.1 Port - HDMI - DVI - 6 x SATA Interfaces H370 PRO4

ASRock H370 Pro4 Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151 - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 4 x USB 3.1 Port - HDMI - DVI - 6 x SATA Interfaces

Supports 8th Generation Intel® Core™ Processors (Socket 1151) 10 Power Phase Design Supports DDR4 2666 2 PCIe 3.0 x16, 3 PCIe 3.0 x1, 1 M.2 (Key E) AMD Quad CrossFireX™ Graphics Output Options: HDMI, DVI-D, D-Sub 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps 6 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3) 2 USB 3.1 Gen2 (Rear Type-A+C), 6 USB 3.1 Gen1 (4 Front, 2 Rear) Intel® Gigabit LAN Dual M.2 For SSD Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock''s U.2 Kit for installing some of the world''s fastest U.2 PCIe Gen3 x4 SSD. Intel® Optane™ Memory Ready Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness. Supports Type 22110 M.2 Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance Supports HEVC 10-bit playback HEVC 10-bit provide substantially improved video quality and higher bit depth video experience. ASRock Intel® 4-Layer Memory POOL Technology POOL (Planes On Outer Layers) technology allows 4-layer boards to utilize stripline routing instead of micro-strip routing, making motherboard having better electrical properties and performance. Premium 50A Power Choke Compared to traditional chokes, ASRock''s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. Sapphire Black PCB Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch. High Density Glass Fabric PCB High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. Intel® LAN Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users! M.2 (KEY E) For WiFi Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot. ELNA Audio Caps Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles. A-Tuning A-Tuning is ASRock''s multi purpose software suite with a new interface, more new features and improved utilities. Live Update & APP Shop ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: H370
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Core i3, Core i5, Core i7, Pentium, Celeron
Multi GPU Supported: CrossFireX
Number of Memory Slots: 4
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2666 MHz, 2400 MHz, 2133 MHz
Intel Optane Memory Ready: Yes
Controller Type: Serial ATA/600
Intel RST: Yes
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 5
Total Number of PCI Express Slots: 5
Number of PCI Express x1 Slots: 3
Number of PCI Express x16 Slots: 2
Total Number of USB Ports: 6
Number of USB 3.1 Ports: 4
VGA: Yes
HDMI: Yes
DVI: Yes
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 7
Number of Onboard USB 3.1 Ports: 4
Form Factor: ATX
Width: 12"
Depth: 8.8"
