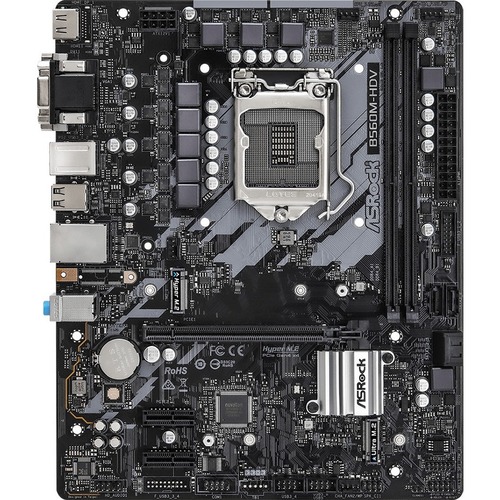

ASRock B560M-HDV Desktop Motherboard - Intel Chipset - Socket LGA-1200 - Intel Optane Memory Ready - Micro ATX - Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots

ASRock B560M-HDV Desktop Motherboard - Intel Chipset - Socket LGA-1200 - Intel Optane Memory Ready - Micro ATX - Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces

Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors Supports DDR4 5000MHz (OC) 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1 Graphics Output Options: HDMI, DVI-D, D-Sub 7.1 CH HD Audio (Realtek ALC897 Audio Codec) 4 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4)1 x Ultra M.2 (PCIe Gen3 x4 & SATA3) 6 x USB 3.2 Gen1 (4 x Rear, 2 x Front)6 x USB 2.0 (2 x Rear, 4 x Front) Intel® Gigabit LAN PREMIUM 50A POWER CHOKE ASRock''s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. Base Frequency Boost (BFB) Technology Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Base Frequency Boost) Technology, users may install their non K series CPUs to ASRock''s selected 500 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately.While ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig. Intel® LAN Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users! PCIe 4.0 High Speed M.2 Solution This motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. 3 Graphics Outputs Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution. HDMI 4k @60Hz Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry. Premium 50A Power Choke Compared to traditional chokes, ASRock''s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: B560
Total Processor Supported: 1
Processor Socket: Socket LGA-1200
Processor Supported: Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3
Number of Memory Slots: 2
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 5000 MHz, 4600 MHz
Intel Optane Memory Ready: Yes
Controller Type: Serial ATA/600
Intel RST: Yes
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 2
Number of USB 3.2 Gen 1 Ports: 4
VGA: Yes
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 6
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.2 Ports: 2
Form Factor: Micro ATX
Width: 9.6"
Depth: 7.8"
Brand Compatibility: Intel
