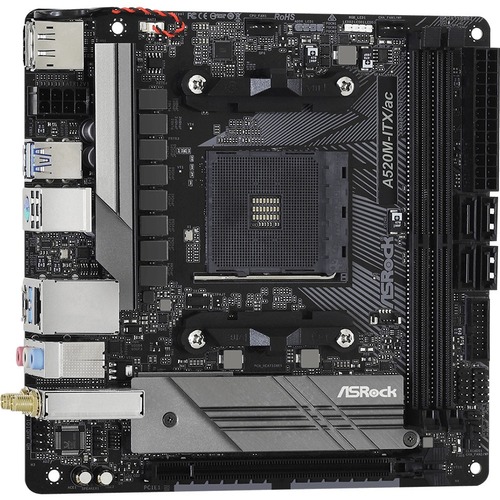

ASRock A520M-ITX/ac Desktop Motherboard - AMD Chipset - Socket AM4 - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - Wireless LAN - IEEE 802.11a/b/g/n/ac - 4 x USB 3.1 Port - HDMI - 1 x RJ-45 - 4 x SATA Interfaces A520M-

ASRock A520M-ITX/ac Desktop Motherboard - AMD Chipset - Socket AM4 - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - Wireless LAN - IEEE 802.11a/b/g/n/ac - 4 x USB 3.1 Port - HDMI - 1 x RJ-45 - 4 x SATA Interfaces

A520 MOTHERBOARD FOR EVERYONEAll Essentials You Need For Computing 8 Power Phase Design Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it enhanced performance with the lowest temperature for advanced gamers. Premium 60A Power Choke Compared to traditional chokes, ASRock''s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. Dual Band 802.11ac WiFi No one has time for weak WiFi signals and sluggish internet! That''s why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.2. Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3) The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules. Dual USB 3.2 Gen1 (Type-A + Type-C) This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen1 ports built on the rear i/o for supporting next generation USB 3.2 Gen1 devices and to deliver up to 5 Gbps data transfer rates. Dual Graphics Outputs Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now. HDMI 4k @60Hz Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry. Premium 60A Power Choke Compared to traditional chokes, ASRock''s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. Dr. MOS Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance. High Density Glass Fabric PCB High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. Sapphire Black PCB Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch. Full Spike Protection Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard''s components from being damaged by these unexpected voltage spikes. Live Update & APP Shop ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Technical Specifications:
Chipset Manufacturer: AMD
Chipset Model: A520
Total Processor Supported: 1
Processor Socket: Socket AM4
Processor Supported: Ryzen 3, Ryzen 5, Ryzen 7, Ryzen 9, Ryzen 3 PRO, Ryzen 5 Pro, Ryzen 7 PRO
Number of Memory Slots: 2
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2133 MHz, 2400 MHz, 2667 MHz, 2933 MHz, 3200 MHz, 3466 MHz, 3600 MHz, 3733 MHz, 3866 MHz, 4000 MHz, 4133 MHz, 4266 MHz, 4400 MHz, 4600 MHz, 4533 MHz, 4466 MHz, 4333 MHz, 4200 MHz, 3800 MHz, 4733 MHz, 4666 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 10
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Bluetooth: Yes
Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11a/b/g/n/ac
Number of Total Expansion Slots: 2
Total Number of PCI Express Slots: 2
Number of PCI Express x1 Slots: 1
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 2
Number of USB 3.2 Ports: 4
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 4
Number of Onboard USB 2.0 Ports: 2
Number of Onboard USB 3.2 Ports: 2
Form Factor: Mini ITX
Width: 6.7"
Depth: 6.7"
Package Contents:

A520M-ITX/ac Desktop Motherboard, Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables, 2 x ASRock WiFi 2.4/5 GHz Antennas

Brand Compatibility: AMD
Environmentally Friendly: Yes
Environmental Certification: ErP/EuP Ready, WEEE, RoHS, China RoHS
