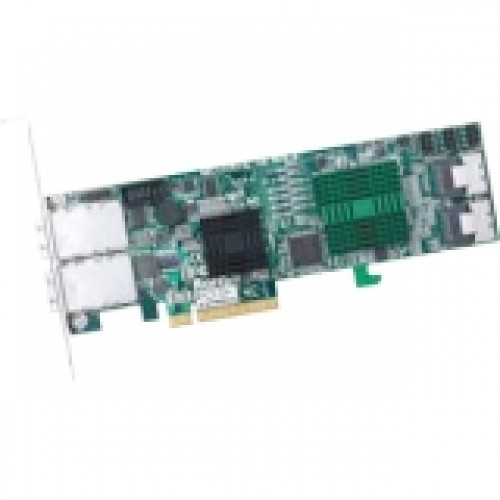

Areca ARC-1320IX-16 24-port SAS Controller - Serial ATA/600 - PCI Express 2.0 x8 - Plug-in Card - 6 Total SAS Port(s) - 4 SAS Port(s) Internal - 2 SAS Port(s) External - RoHS Compliance ARC-1320IX-16

Areca ARC-1320IX-16 24-port SAS Controller - Serial ATA/600 - PCI Express 2.0 x8 - Plug-in Card - 6 Total SAS Port(s) - 4 SAS Port(s) Internal - 2 SAS Port(s) External - RoHS Compliance

The ARC-1320 series is a low profile host adapter. It brings the fastest available connections to 6Gb/s and 3Gb/s SAS/SATA interface storage on any computer, workstation and server with PCI Express 2.0 interface.

Technical Specifications:
Host Interface: PCI Express 2.0 x8
Controller Type: Serial ATA/600
RAID Supported: No
Maximum Data Transfer Rate: 600
Total Number of SAS Ports: 6
Number of SAS Ports (Internal): 4
Number of SAS Ports (External): 2
SAS Connector Details: 4 x SFF-8087, 2 x SFF-8088
Height: 2.5"
Width: 8.4"
Form Factor: Plug-in Card
Card Height: Low-profile
Platform Supported: PC, Mac
Environmentally Friendly: Yes
Environmental Certification: RoHS
