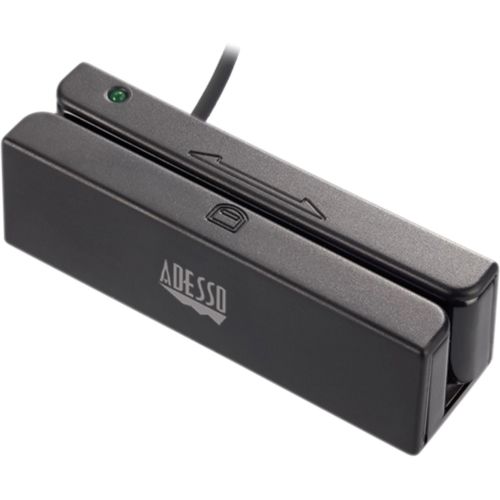

Adesso MSR-100 Magnetic Stripe Card Reader - Triple Track - 50 in/s MSR-100

Adesso MSR-100 Magnetic Stripe Card Reader - Triple Track - 50 in/s MSR-100
Brand: Adesso, Inc
Part Number: MSR-100
MSRP: $66.99
Availability: 10 or more
Condition: New
Price: $55.00
Qty:     - OR -   Add to Wish List
Add to Compare
Adesso MSR-100 Magnetic Stripe Card Reader - Triple Track - 50 in/s

The Adesso MSR-100 magnetic stripe card reader is used to read and transmit data from any magnetic card that is swiped. It has an excellent Electro--Static discharge and electromagnetic compatible. It is widely used in all different areas such as POS terminals, poster terminals, access monitoring, attendance records etc... Features: Magnetic Stripe Reader (MSR) The Magnetic Stripe Reader makes credit card transactions a breeze- a perfect Point Of Sale feature for any POS setup. Bi-Directional Swipe in any direction either from left to right or right to left with accuracy and convenience without any difference in readings or limitations. Up to 500,000 passes with ISO-conforming cards Long life span greater then 500,000 swipes of ISO cards. Never worry about a wearing head, or inaccurate readings because of it. The MSR-100 will last for years and years of accurate readings into your POS system. Single, Dual, or Three Track Capability The stripe card reader reads up to 3 tracks of data, e.g. decoding/encoding and verifies up to 3 tracks of data simultaneously. So in addition to reading the standard credit card and driver license formats, these readers will read custom formats such as 7-bit encoding on all 3 tracks.


Warning: This product can expose you to chemicals including Polybrominated biphenyls, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Technical Specifications:
Magnetic Stripe Track Configuration: Triple Track
Magnetic Stripe Track Number: Track 1, Track 2, Track 3
Minimum Swipe Speed: 3 in/s
Maximum Swipe Speed: 50 in/s
Number of Swipes (Head Life): 500000
Magnetic Stripe Format: ISO 7810, ISO 7811
Bi-directional Reading: Yes
USB: Yes
Input Voltage: 5 V DC
Height: 1"
Width: 0.9"
Length: 3.6"
Weight (Approximate): 4 oz
Additional Information:
    Encode Mode: F2F, Standard: ISO7810?ISO7811-1/2/3/4/5, Compatible Operation systems: Windows® 2000 / XP / Vista / 7 / 8 / 10, Data Format: according with the requirement of user, Card Swipe Speed: 10-140cm/s, Life circle of the Head: ?500000 times, Coercive Force: 300-4000oe, The Density of Magnetic Stripe:

Track 1-210BPI with max 75 characters

Track 2-210BPI with max 75 characters or 75BPI with 37 characters;

Track 3-210BPI with max 75 characters

Environment :

    Working Temperature: 0-40?, Working Humidity: 10%- 90%, Working Voltage: DC+5V ±5%, Working Current: ?50mA, Storage Temperature: -20 -50 ?

Certifications & Standards:
    FCC, CE

Environmentally Friendly: Yes
Environmental Certification: WEEE, RoHS
Country of Origin: China
