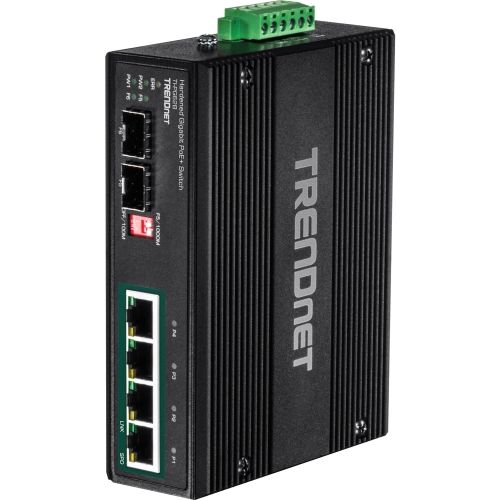

Trendnet 6-Port Industrial Gigabit PoE+ DIN-Rail Switch 12 - 56 V - 4 Ports - 2 Layer Supported - Modular - Twisted Pair, Optical Fiber - Rail-mountable, Wall Mountable - Lifetime Limited Warranty - TAA Compliance TI-PG62B

TRENDnet 6-Port Industrial Gigabit PoE+ DIN-Rail Switch 12 - 56 V - 4 Ports - 2 Layer Supported - Modular - Twisted Pair, Optical Fiber - Rail-mountable, Wall Mountable - Lifetime Limited Warranty - TAA Compliance

TRENDnet''s TI-PG62B is a reliable IP30 unmanaged hardened DIN-rail PoE+ switch with a rugged housing rated for extreme industrial environments. It offers 4 Gigabit PoE+ ports, two dedicated SFP slots and a 12 Gbps switching capacity. Dual redundant 12 - 56 VDC power inputs and a power failure alarm relay. PoE Power A 60 - 120 W PoE+ power budget supplies up to four Power over Ethernet devices. Fault Tolerance Features dual redundant 12 - 56 VDC power inputs with output alarm relay. Industrial Hardened Design Equipped with a rugged IP30 rated housing designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate within a wide temperature range of -40 - 75° C (-40 - 167° F). Network Ports 4 x Gigabit PoE+ ports and 2 x dedicated SFP slots DIN-Rail / Wall Mounts IP30 rated metal enclosure with included DIN-rail and wall mount hardware Switching Capacity 12 Gbps switching capacity Redundant Power Dual redundant power inputs with overload current protection (power supply sold separately models: (model: TI-S12048) Alarm Relay Alarm relay triggered by power failure of primary and/or redundant power Jumbo Frame Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance Extreme Temperatures Industrial switch is rated for an operating temperature range of -40 - 75 °C (-40 - 167 °F) Shock and Vibration Resistant Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6) Grounding Point Grounding point protects equipment from external electrical surges

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Technical Specifications:
Total Number of Network Ports: 6
Uplink Port: No
Modular: Yes
Stack Port: No
Port/Expansion Slot Details: 4 x Gigabit Ethernet Network, 2 x Gigabit Ethernet Expansion Slot
Media Type Supported: Twisted Pair, Optical Fiber
Ethernet Technology: Gigabit Ethernet
Network Technology: 1000Base-T, 1000Base-X
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP
Shared SFP Slot: No
Number of SFP Slots: 2
Layer Supported: 2
Manageable: No
Form Factor: Rail-mountable, Wall Mountable
Height: 3"
Width: 7"
Depth: 9"
Length: 5.6"
Weight (Approximate): 2.09 lb
Package Contents:

6-Port Industrial Gigabit PoE+ DIN-Rail Switch 12 - 56 V, Quick Installation Guide, Removable Terminal Block, DIN-rail and Wall Mount Kit

Environmentally Friendly: Yes
Environmental Certification: WEEE, RoHS
Country of Origin: Taiwan
NDAA Compliant: Yes
