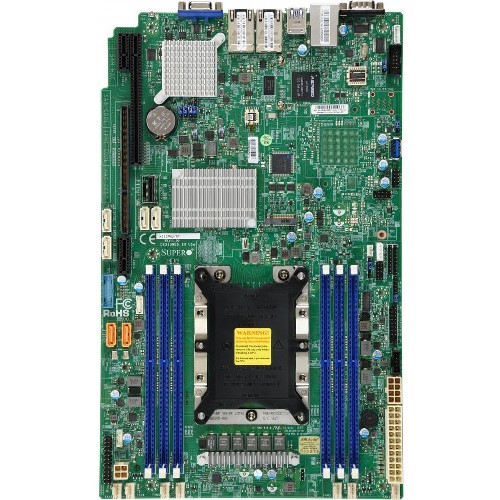

Supermicro X11SPW-CTF Server Motherboard - Intel Chipset - Socket P LGA-3647 - 768 GB DDR4 SDRAM Maximum RAM - RDIMM, DIMM, LRDIMM - 6 x Memory Slots - 2 x USB 3.0 Port - 10 x SATA Interfaces MBD-X11SPW-CTF-O

Supermicro X11SPW-CTF Server Motherboard - Intel Chipset - Socket P LGA-3647 - 768 GB DDR4 SDRAM Maximum RAM - RDIMM, DIMM, LRDIMM - 6 x Memory Slots - 2 x USB 3.0 Port - 10 x SATA Interfaces MBD-X11SPW-CTF-O
Brand: Supermicro
Part Number: MBD-X11SPW-CTF-O
MSRP: $818.99
Availability: 10 or more
Condition: New
Price: $682.39
Qty:     - OR -   Add to Wish List
Add to Compare
Supermicro X11SPW-CTF Server Motherboard - Intel Chipset - Socket P LGA-3647 - 768 GB DDR4 SDRAM Maximum RAM - RDIMM, DIMM, LRDIMM - 6 x Memory Slots - 2 x USB 3.0 Port - 10 x SATA Interfaces

UP Xeon® Motherboards - Socket P (LGA 3647) BOARDS supporting Intel® Xeon® Scalable Processors / Socket P (LGA 3647)Supermicro''s new generation X11 UP serverboards offer the highest levels of performance, efficiency, security and scalability in the industry with up to: 1TB DDR4 2666MHz in 8 DIMM slots per node, 7 PCI-E slots, SAS 3.0/SATA 3.0/NVMe hot-swap HDD/SSD support, 1GbE/10GBase-T/10G SFP+ networking options, SATA Disk-on-Module (DOM), and IPMI 2.0 plus KVM with dedicated LAN.


Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: C622
Total Processor Supported: 1
Processor Socket: Socket P LGA-3647
Processor Supported: Xeon
Number of Memory Slots: 6
Memory Form Factor: RDIMM, DIMM, LRDIMM
Maximum Memory Supported: 768 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2666 MHz, 2400 MHz, 2133 MHz, 1866 MHz, 1600 MHz
Controller Type: Serial ATA/600, 12Gb/s SAS
RAID Supported: Yes
RAID Levels: 10, 5, 1, 0
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2500
10Gigabit Ethernet: Yes
Number of Total Expansion Slots: 2
Total Number of PCI Express Slots: 2
Number of PCI Express x16 Slots: 1
Number of PCI Express x32 Slots: 1
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 2
VGA: Yes
Number of SATA Interfaces: 10
Number of SAS Interfaces: 4
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 8
Number of Onboard USB 3.0 Ports: 3
Form Factor: Proprietary Form Factor
Width: 13"
Depth: 8"
Compatibility:

Chassis:

    SC815TQC-605WB, SC815TQC-R504WB, SC825TQ-R500WB
