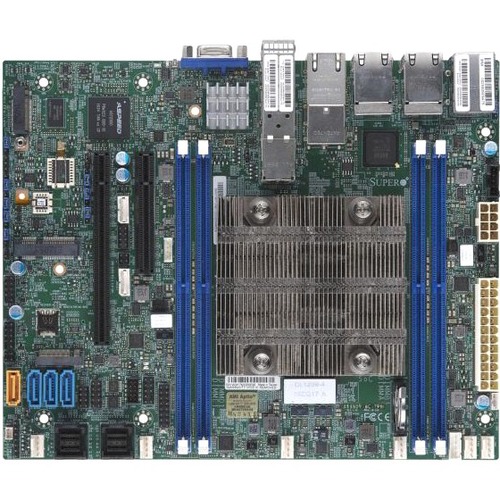

Supermicro X11SDV-4C-TP8F Server Motherboard - Intel Chipset - Socket BGA-2518 - Intel Xeon D-2123IT Quad-core (4 Core) - Retail Pack - Flex ATX - 512 GB DDR4 SDRAM Maximum RAM - 2.67 GHz, 2.40 GHz, 2.13 GHz Memory Speed Supported - RDIMM, LRDIMM, DIMM -

Supermicro X11SDV-4C-TP8F Server Motherboard - Intel Chipset - Socket BGA-2518 - Intel Xeon D-2123IT Quad-core (4 Core) - Retail Pack - Flex ATX - 512 GB DDR4 SDRAM Maximum RAM - 2.67 GHz, 2.40 GHz, 2.13 GHz Memory Speed Supported - RDIMM, LRDIMM, DIMM - 4 x Memory Slots - Serial ATA/600 RAID Supported Controller - 10, 5, 1, 0 RAID Levels - On-board Video Chipset - 2 x USB 3.0 Port - ASPEED AST2500 - Gigabit Ethernet - 10Gigabit Ethernet - 1 x PCI Express x8 Slots - 1 x PCI Express x16 Slot

UP Xeon® D-2100 Motherboards - Socket FCBGA 2518 X11SDV Embedded Boards / Xeon D SoC Supermicro leverages its deep expertise in server technology to bring customers the first Intel® Xeon® D System-on a-Chip (SoC) Family solutions with server-class reliability, availability and serviceability (RAS) features available in ultra-dense and low-power solutions. Xeon D combines the performance and advanced intelligence of Intel® Xeon® processors into a dense, lower-power system-on-a-chip. The solutions will be able to deliver optimized compute and storage for intelligent edge network appliances, mid-range networking, cold and warm storage environments such as storage and network security appliances, SMB storage servers, Hadoop, web hosting, controllers, dedicated compute nodes, and other similar applications.

Technical Specifications:
Chipset Manufacturer: Intel
Processor Socket: Socket BGA-2518
Integrated Processor Manufacturer: Intel
Integrated Processor Type: Xeon
Integrated Processor Model: D-2123IT
Integrated Processor Core: Quad-core (4 Core)
Number of Memory Slots: 4
Memory Form Factor: RDIMM, LRDIMM, DIMM
Maximum Memory Supported: 512 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2666 MHz, 2400 MHz, 2133 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 10, 5, 1, 0
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2500
Gigabit Ethernet: Yes
10Gigabit Ethernet: Yes
Number of Total Expansion Slots: 2
Total Number of PCI Express Slots: 2
Number of PCI Express x8 Slots: 1
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 2
Number of USB 3.0 Ports: 2
VGA: Yes
Number of SATA Interfaces: 12
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 2
Form Factor: Flex ATX
Width: 9"
Depth: 7.3"
