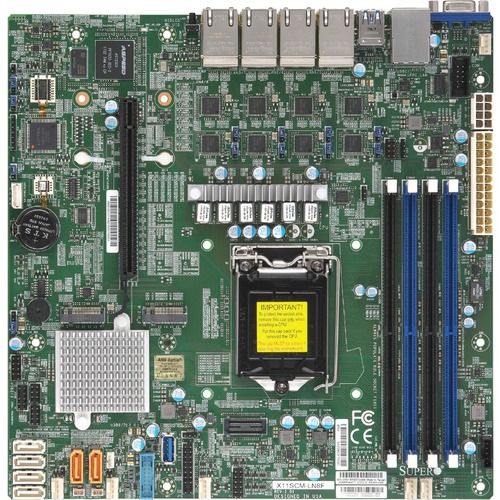

Supermicro X11SCM-LN8F Server Motherboard - Intel Chipset - Socket H4 LGA-1151 - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2 x USB 3.1 Port - 8 x RJ-45 - 6 x SATA Interfaces MBD-X11SCM-LN8F-B

Supermicro X11SCM-LN8F Server Motherboard - Intel Chipset - Socket H4 LGA-1151 - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2 x USB 3.1 Port - 8 x RJ-45 - 6 x SATA Interfaces MBD-X11SCM-LN8F-B
Brand: Supermicro
Part Number: MBD-X11SCM-LN8F-B
MSRP: $427.99
Availability: 10 or more
Condition: New
Price: $356.03
Qty:     - OR -   Add to Wish List
Add to Compare
Supermicro X11SCM-LN8F Server Motherboard - Intel Chipset - Socket H4 LGA-1151 - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2 x USB 3.1 Port - 8 x RJ-45 - 6 x SATA Interfaces

Xeon® E-2100 Boards / Socket H4 (LGA 1151)The new Supermicro Building Block Solutions® for the Intel® Xeon® E-2100 series include new server-class motherboards offering a wide range of high performance, network appliance and embedded/IoT applications.


Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: C246
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Celeron, Pentium, Xeon, Core i3
Number of Memory Slots: 4
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 128 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2666 MHz, 2400 MHz, 2133 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2500
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 1
Total Number of PCI Express Slots: 1
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 2
Number of USB 3.1 Ports: 2
VGA: Yes
Number of Network (RJ-45) Ports: 8
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 5
Number of Onboard USB 2.0 Ports: 2
Number of Onboard USB 3.1 Ports: 3
Form Factor: Micro ATX
Width: 9.6"
Depth: 9.6"
Package Contents:
    X11SCM-LN8F Server Motherboard, 2 x I/O Cables, 1 x STD I/O Shield for X11SCM-LN8F with EMI Gasket

Compatibility: Supermicro Chassis:
    SC813MFTQC-350CB2, SC813MFTQC-R407CB, SC512F-350B1, SC515-350, SC515-R407, SC514-R407C, SC113MTQ-R400C, 1U Heatsink: SNK-P0046P, SC825TQC-R740LPB, 2U Heatsink:SNK-P0046A4
Supermicro Server:
    SYS-1019C-FHTN8

Environmentally Friendly: Yes
Environmental Certification: RoHS
