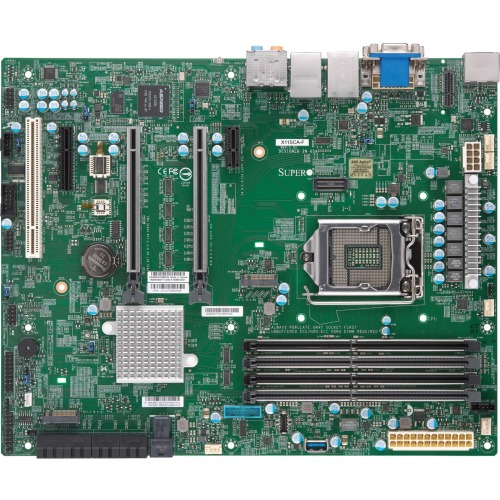

Supermicro X11SCA-F Workstation Motherboard - Intel Chipset - Socket H4 LGA-1151 - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 4 x USB 3.1 Port - HDMI - DVI - 8 x SATA Interfaces MBD-X11SCA-F-O

Supermicro X11SCA-F Workstation Motherboard - Intel Chipset - Socket H4 LGA-1151 - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 4 x USB 3.1 Port - HDMI - DVI - 8 x SATA Interfaces MBD-X11SCA-F-O
Brand: Supermicro
Part Number: MBD-X11SCA-F-O
MSRP: $500.99
Availability: 10 or more
Condition: New
Price: $416.70
Qty:     - OR -   Add to Wish List
Add to Compare
Supermicro X11SCA-F Workstation Motherboard - Intel Chipset - Socket H4 LGA-1151 - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 4 x USB 3.1 Port - HDMI - DVI - 8 x SATA Interfaces

UP Xeon® Motherboards - Socket H4 (LGA 1151) Xeon® E-2100 Boards / Socket H4 (LGA 1151) Supermicro''s new X11SCA workstation motherboard comes in a standard ATX form factor packed with features and expandability options including 4k video support. Optimized for the latest Xeon E processors, this platform supports up to 64GB of either ECC or non-ECC DDR4-2666 memory, triple displays with DisplayPort 1.2, HDMI 2.0, DVI-D; dual M.2, U.2, dual GbE LAN ports, and USB 3.1 Gen 2. In addition, there is a front panel USB-C header on the X11SCA motherboard with different versions to add either gigabit wireless 802.11ac with Bluetooth 5.0 (X11SCA-W) or Supermicro IPMI 2.0 with an additional VGA port (X11SCA-F).


Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: C246
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Celeron, Core i3, Pentium, Xeon
Number of Memory Slots: 4
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2666 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2500
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 5
Total Number of PCI Express Slots: 4
Number of PCI Express x1 Slots: 1
Number of PCI Express x4 Slots: 1
Number of PCI Express x16 Slots: 2
Total Number of USB Ports: 4
Number of USB 3.1 Ports: 4
VGA: Yes
HDMI: Yes
DisplayPort: Yes
DVI: Yes
Number of SATA Interfaces: 8
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 6
Number of Onboard USB 3.1 Ports: 4
Form Factor: ATX
Width: 12"
Depth: 9.6"
Package Contents:
    X11SCA-F Workstation Motherboard, 6 x SATA3 Cable, 1 x X11SCA Series IO Shield, 2 x M.2 SSD Folder, 1 x X11SCA Series Quick Reference Guide

Environmentally Friendly: Yes
Environmental Certification: RoHS
