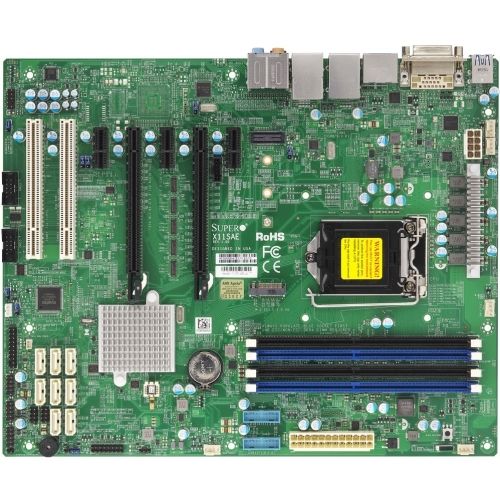

Supermicro X11SAE Workstation Motherboard - Intel Chipset - Socket H4 LGA-1151 - Bulk Pack - ATX - 1 x Processor Support - 64 GB DDR4 SDRAM Maximum RAM - 2.13 GHz, 1.87 GHz, 1.60 GHz Memory Speed Supported - DIMM, UDIMM - 4 x Memory Slots - Serial ATA/600

Supermicro X11SAE Workstation Motherboard - Intel Chipset - Socket H4 LGA-1151 - Bulk Pack - ATX - 1 x Processor Support - 64 GB DDR4 SDRAM Maximum RAM - 2.13 GHz, 1.87 GHz, 1.60 GHz Memory Speed Supported - DIMM, UDIMM - 4 x Memory Slots - Serial ATA/600
Brand: Supermicro
Part Number: MBD-X11SAE-B
MSRP: $357.99
Availability: 10 or more
Condition: New
Price: $297.98
Qty:     - OR -   Add to Wish List
Add to Compare
Supermicro X11SAE Workstation Motherboard - Intel Chipset - Socket H4 LGA-1151 - Bulk Pack - ATX - 1 x Processor Support - 64 GB DDR4 SDRAM Maximum RAM - 2.13 GHz, 1.87 GHz, 1.60 GHz Memory Speed Supported - DIMM, UDIMM - 4 x Memory Slots - Serial ATA/600 RAID Supported Controller - 0, 1, 5, 10 RAID Levels - CPU Dependent Video - 2 x USB 3.0 Port - HDMI - Intel - 7.1 Audio Channels - Gigabit Ethernet - 3 x PCI Express x1 Slots - 2 x PCI Express x16 Slots - 6 x USB Ports - DisplayPort - DVI

Xeon® E3-1200 v5 Family Boards / Socket H4 (LGA 1151)Supermicro''s single processor Socket H4 designs feature the Intel® C236 chipset which support the Intel® Xeon E3-1200 v5 processor family and Intel® 6th Gen Core i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS, onboard IPMI or vPro, USB 3.0/USB 3.1, PCI-E 3.0 M.2 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, and DVI ports. Designed with performance, reliability, manageability and long life in mind, Supermicro''s single processor motherboards are the perfect solution for a variety of server, workstation and embedded applications.


Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: C236
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Xeon, Core i7, Core i5, Core i3
Number of Memory Slots: 4
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2133 MHz, 1866 MHz, 1600 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Onboard Video: CPU Dependent Video
Graphics Controller Manufacturer: Intel
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 7
Total Number of PCI Express Slots: 5
Number of PCI Express x1 Slots: 3
Number of PCI Express x16 Slots: 2
Total Number of USB Ports: 6
Number of USB 3.0 Ports: 2
Number of USB 3.1 Ports: 2
HDMI: Yes
DisplayPort: Yes
DVI: Yes
Number of SATA Interfaces: 8
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 10
Number of Onboard USB 3.0 Ports: 4
Form Factor: ATX
Width: 12"
Depth: 9.6"
Compatibility: Supermicro Chassis:

Mid/Mini Tower Chassis:
    SC732D4-903B, SC732D4-865B

4U / Tower Chassis:
    SC743TQ-1200B-SQ

SuperServer(s) Model(s):
    SYS-5039A-IL

Environmentally Friendly: Yes
Environmental Certification: RoHS
