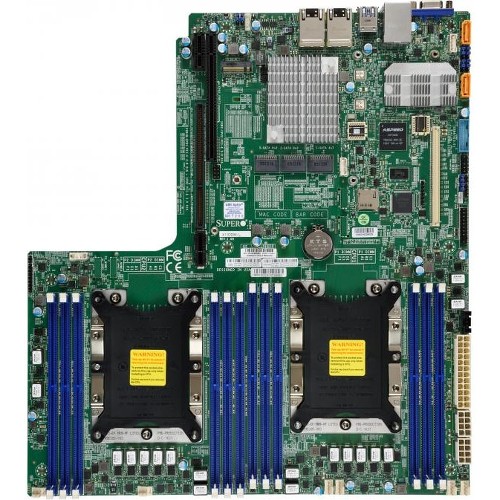

Supermicro X11DDW-L Server Motherboard - Intel Chipset - Socket P LGA-3647 - 1.50 TB DDR4 SDRAM Maximum RAM - RDIMM, DIMM, LRDIMM - 12 x Memory Slots - Gigabit Ethernet - 4 x USB 3.0 Port - 14 x SATA Interfaces MBD-X11DDW-L-O

Supermicro X11DDW-L Server Motherboard - Intel Chipset - Socket P LGA-3647 - 1.50 TB DDR4 SDRAM Maximum RAM - RDIMM, DIMM, LRDIMM - 12 x Memory Slots - Gigabit Ethernet - 4 x USB 3.0 Port - 14 x SATA Interfaces MBD-X11DDW-L-O
Brand: Supermicro
Part Number: MBD-X11DDW-L-O
MSRP: $766.99
Availability: 10 or more
Condition: New
Price: $638.53
Qty:     - OR -   Add to Wish List
Add to Compare
Supermicro X11DDW-L Server Motherboard - Intel Chipset - Socket P LGA-3647 - 1.50 TB DDR4 SDRAM Maximum RAM - RDIMM, DIMM, LRDIMM - 12 x Memory Slots - Gigabit Ethernet - 4 x USB 3.0 Port - 14 x SATA Interfaces

DP Xeon® Motherboards - Socket P (LGA 3647) BOARDS supporting Intel® Xeon® Scalable Processors / Socket P (LGA 3647)Supermicro''s new generation X11 DP serverboards offer the highest levels of performance, efficiency, security and scalability in the industry with up to: 3TB DDR4 2666MHz in 24 DIMM slots per node, 7 PCI-E slots, SAS 3.0/SATA 3.0/NVMe hot-swap HDD/SSD support, 10GBase-T/10G SFP+/56Gbps FDR InfiniBand networking options, SATA Disk-on-Module (DOM), and IPMI 2.0 plus KVM with dedicated LAN. The SuperWorkstation boards offer in addition 7.1 HD Audio, Thunderbolt AOC header, and up to 11 USB ports.


Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: C621
Total Processor Supported: 2
Processor Socket: Socket P LGA-3647
Processor Supported: Xeon
Number of Memory Slots: 12
Memory Form Factor: RDIMM, DIMM, LRDIMM
Maximum Memory Supported: 1.50 TB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2666 MHz, 2400 MHz, 2133 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 10, 5, 1, 0
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2500
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x16 Slots: 2
Number of PCI Express x32 Slots: 1
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 4
VGA: Yes
Number of SATA Interfaces: 14
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 2
Number of Onboard USB 3.0 Ports: 2
Form Factor: Proprietary Form Factor
Width: 13.4"
Depth: 12.3"
Compatibility:

SuperServer:

    SYS-1029P-WT, SYS-1029P-WTR, SYS-6019P-WT, SYS-6019P-WTR, SYS-6019P-WT8, SYS-6029P-WTR

Chassis:

    SC815TQC-R706WB2, SC815TQC-605WB, SC116AC2-R706WB2, SC113AC2-R706WB2, SC113AC2-605WB, SC825TQC-R1K03WB, SC826BAC4-R1K23WB

Country of Origin: United States
