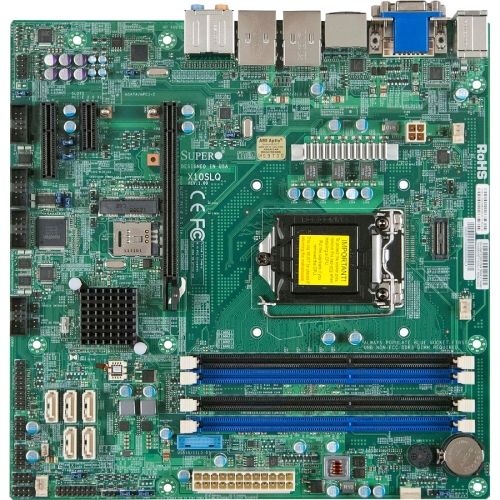

Supermicro X10SLQ Server Motherboard - Intel Chipset - Socket H3 LGA-1150 - 32 GB DDR3 SDRAM Maximum RAM - DDR3-1600/PC3-12800, DDR3-1333/PC3-10600, DDR3-1066/PC3-8500 - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2 x USB 3.0 Port - HDMI - DVI - 2

Supermicro X10SLQ Server Motherboard - Intel Chipset - Socket H3 LGA-1150 - 32 GB DDR3 SDRAM Maximum RAM - DDR3-1600/PC3-12800, DDR3-1333/PC3-10600, DDR3-1066/PC3-8500 - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2 x USB 3.0 Port - HDMI - DVI - 2
Brand: Supermicro
Part Number: MBD-X10SLQ-O
MSRP: $277.99
Availability: 10 or more
Condition: New
Price: $230.90
Qty:     - OR -   Add to Wish List
Add to Compare
Supermicro X10SLQ Server Motherboard - Intel Chipset - Socket H3 LGA-1150 - 32 GB DDR3 SDRAM Maximum RAM - DDR3-1600/PC3-12800, DDR3-1333/PC3-10600, DDR3-1066/PC3-8500 - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2 x USB 3.0 Port - HDMI - DVI - 2 x RJ-45 - 6 x SATA Interfaces - RoHS-6 Compliance

Supermicro leverages its deep expertise in server technology to bring customers the newest generation in UP server solutions with the X10 series of serverboards. These advanced technology building blocks offer the best server performance with the latest Intel® Xeon® E3-1200 v3 CPUs, up to 4 DIMMs operating at 1600MHz, USB 3.0, onboard SAS 2.0 or SATA 3.0 (6Gbps) HDDs, onboard IPMI, and advanced options such as quad Gigabit Ethernet LAN. Power efficiency is not sacrificed due to DDR3L (1.5v) support, LV CPU SKUs, digital platinum level high-efficiency power supplies, and application optimized cooling.


Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: Q87 Express
Total Processor Supported: 1
Processor Socket: Socket H3 LGA-1150
Processor Supported: Core i7, Core i5, Core i3, Pentium, Celeron
64-bit Processing: Yes
Number of Memory Slots: 4
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 32 GB
Memory Standard: DDR3-1600/PC3-12800, DDR3-1333/PC3-10600, DDR3-1066/PC3-8500
Memory Technology: DDR3 SDRAM
Memory Speed Supported: 1600 MHz, 1333 MHz, 1066 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 1+0
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: Intel
Graphics Controller Model: HD 4600
Sound Controller Manufacturer: Realtek
Sound Controller Model: ALC888S
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 4
PCI Express Standard: PCI Express 3.0, PCI Express 2.0
Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 1
Number of PCI Express x4 Slots: 1
Number of PCI Express x16 Slots: 1
Number of Mini PCI Express Slots: 1
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 4
Number of USB 3.0 Ports: 2
Audio Line In: Yes
Audio Line Out: Yes
Microphone Port: Yes
VGA: Yes
HDMI: Yes
Number of HDMI Outputs: 1
DisplayPort: Yes
Number of DisplayPort Outputs: 1
DVI: Yes
Number of DVI Outputs: 1
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
PS/2 Port: Yes
Number of PS/2 Ports: 1
Number of SATA Interfaces: 6
Number of mSATA Interfaces: 1
Total Number of Onboard USB Ports: 6
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.0 Ports: 2
Onboard Serial Header: Yes
Onboard LEDs Header: Yes
Onboard Audio Header: Yes
Form Factor: Micro ATX
Width: 9.6"
Depth: 9.6"
Compatibility: 3U Chassis:
CSE-732D2-903B, CSE-732D4-903BMid-Tower:
CSE-731D-300B, CSE-731i-300B, CSE-732D2-500B, CSE-732D2-865B, CSE-732D4-500B, CSE-732D4-865B, CSE-732D4F-500B, CSE-732D4F-865B, CSE-732D4F-903B, CSE-732i-500B, CSE-732i-865B


Certifications & Standards: ACPI 5.0, CE, FCC
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
