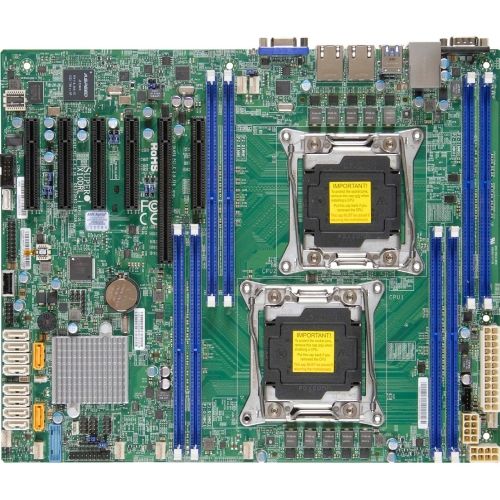

Supermicro X10DRL-i Server Motherboard - Intel Chipset - Socket LGA 2011-v3 - 512 GB DDR4 SDRAM Maximum RAM - 8 x Memory Slots - Gigabit Ethernet - 2 x USB 3.0 Port - 3 x RJ-45 - 10 x SATA Interfaces - RoHS Compliance MBD-X10DRL-I-O

Supermicro X10DRL-i Server Motherboard - Intel Chipset - Socket LGA 2011-v3 - 512 GB DDR4 SDRAM Maximum RAM - 8 x Memory Slots - Gigabit Ethernet - 2 x USB 3.0 Port - 3 x RJ-45 - 10 x SATA Interfaces - RoHS Compliance MBD-X10DRL-I-O
Brand: Supermicro
Part Number: MBD-X10DRL-I-O
MSRP: $517.99
Availability: 10 or more
Condition: New
Price: $430.84
Qty:     - OR -   Add to Wish List
Add to Compare
Supermicro X10DRL-i Server Motherboard - Intel Chipset - Socket LGA 2011-v3 - 512 GB DDR4 SDRAM Maximum RAM - 8 x Memory Slots - Gigabit Ethernet - 2 x USB 3.0 Port - 3 x RJ-45 - 10 x SATA Interfaces - RoHS Compliance

Xeon® E5 Family BOARDS / Socket R3 (LGA 2011) Introducing Supermicro''s latest generation of dual processor motherboard technology based on Intel''s E5-2600 v3 Haswell processor. Supermicro''s X10 motherboards are specifically designed to meet the demanding needs of today''s complex computational workloads. Feature rich and highly expandable, our X10 motherboards provide the latest advanced integrated and expandable storage and networking technologies. Features like lightning fast DDR4 memory, NVMe/SAS3/SATA3 storage interfaces, 1G/10GBASE-T, 10G SFP+, 40GbE, and Infiniband QDR/FDR. With its unprecedented set of features, each X10 motherboard is specifically tailored to provide optimal performance while helping to reduce deployment and operational costs over the lifespan of the product.


Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: C612
Total Processor Supported: 2
Processor Socket: Socket LGA 2011-v3
Processor Supported: Xeon
QuickPath Interconnect: 9.60 GT/s
64-bit Processing: Yes
Number of Memory Slots: 8
Memory Form Factor: DIMM, LRDIMM, RDIMM
Maximum Memory Supported: 512 GB
Memory Standard: DDR4-2133/PC4-17000, DDR4-1866/PC4-14900, DDR4-1600/PC4-12800
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2133 MHz, 1866 MHz, 1600 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2400
Graphics Memory Technology: DDR4 SDRAM
Graphics Memory Accessibility: Shared
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 6
PCI Express Standard: PCI Express 3.0, PCI Express 2.0
Total Number of PCI Express Slots: 6
Number of PCI Express x8 Slots: 5
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 2
Number of USB 3.0 Ports: 2
Serial Port: Yes
VGA: Yes
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 3
Number of SATA Interfaces: 10
Total Number of Onboard USB Ports: 5
Number of Onboard USB 2.0 Ports: 3
Number of Onboard USB 3.0 Ports: 2
Onboard Serial Header: Yes
Onboard LEDs Header: Yes
Form Factor: ATX
Width: 12"
Depth: 10"
Package Contents:
    X10DRL-i Server Motherboard, 6 x I/O Cables, 1 x I/O Shield

Compatibility: Supermicro SuperChassis

1U Chassis:
SC113MFAC2-R606CB, SC813MFTQ-441CB, SC813MFTQ-R400CB, SC813MFTQ-R606CB2U Chassis:
SC213LT-600LPB, SC823TQ-653LPB, SC826TQ-R500LPB3U / Mid-Tower Chassis:SC732D4F-903B, SC732I-500B, SC833T-653B4U / Tower Chassis:SC842TQ-665B, SC842TQ-865BSupermicro SuperServer:
SYS-6018R-MT, SYS-6018R-MTR
Certifications & Standards: ACPI 4.0, CE, FCC
Environmentally Friendly: Yes
Environmental Certification: RoHS
