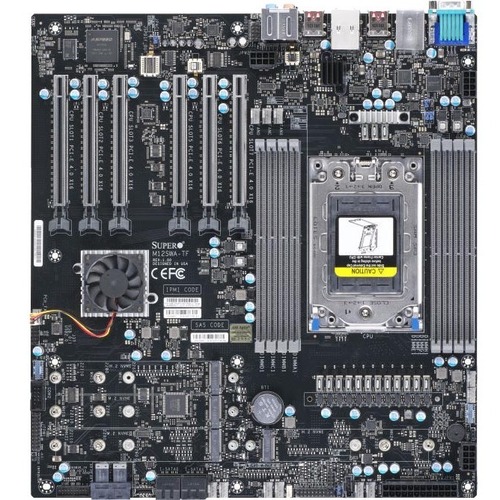

Supermicro M12SWA-TF Workstation Motherboard - AMD Chipset - Socket SP3 - Extended ATX - 2 TB DDR4 SDRAM Maximum RAM - RDIMM, UDIMM - 8 x Memory Slots - Gigabit Ethernet - 4 x SATA Interfaces MBD-M12SWA-TF-O

Supermicro M12SWA-TF Workstation Motherboard - AMD Chipset - Socket SP3 - Extended ATX - 2 TB DDR4 SDRAM Maximum RAM - RDIMM, UDIMM - 8 x Memory Slots - Gigabit Ethernet - 4 x SATA Interfaces
Technical Specifications:
Chipset Manufacturer: AMD
Chipset Model: WRX80
Total Processor Supported: 1
Processor Socket: Socket SP3
Processor Supported: Ryzen Threadripper
Number of Memory Slots: 8
Memory Form Factor: RDIMM, UDIMM
Maximum Memory Supported: 2 TB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 3200 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2600
Audio Channels: 7.1
Gigabit Ethernet: Yes
10Gigabit Ethernet: Yes
Number of Total Expansion Slots: 6
Number of PCI Express x16 Slots: 6
Total Number of USB Ports: 9
Number of USB 3.2 Ports: 9
VGA: Yes
Number of Network (RJ-45) Ports: 2
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 4
Total Number of Onboard USB Ports: 6
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.2 Ports: 2
Form Factor: Extended ATX
Width: 12"
Depth: 13"
Country of Origin: Taiwan
