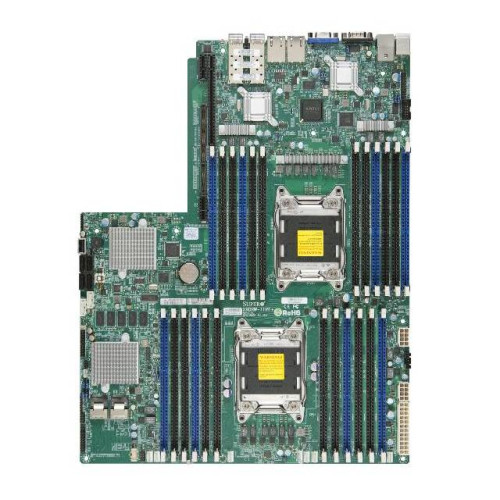

Supermicro X9DRW-7TPF+-B Dual LGA2011/ Intel C602J/ DDR3/ SATA3&SAS2/ V&2GbE/ Proprietary WIO Server Motherboard

Specifications

• Mfr Part Number: X9DRW-7TPF+-B
• CPU: Dual LGA2011
  • Support Intel Xeon E5-2600 and E5-2600 v2 Processors
  • Cache up to 30MB
  • QPI up to 8.0 GT/s
  • Support up to 135W TDP
• Chipset: Intel C602J
• Memory: 24x 240pin DDR3-1866/ 1600/ 1333/ 1066/ 800 DIMM Slots, Supports up to 768GB ECC/REG Memory or up to 128GB ECC/Non-ECC Un-buffered Memory or up to 1.5TB ECC/Load Reduced Memory
• Slots: 1x PCI-Express 3.0 x32 Slot (Left hand riser), 1x PCI-Express 3.0 x16 Slot (Right hand riser)
• SATA: 2x SATA3 Ports, 4x SATA2 Ports, Support RAID 0, 1, 5, 10
• SAS: 8x SAS2 ports, Support RAID 0, 1, 5, 6, 10, 50, 60
• Video: G200 (Nuvoton WPCM450 BMC) Graphics
• LAN: Intel 82599 Dual Port 10G SFP+ and Intel i350 Dual Port Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)
• Ports: 7x USB 2.0 Ports (2 rear, 4 via header, 1 Type A), 1x PS/2 Keyboard/Mouse Combo Port, 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x SFP+ 10GbE LAN Ports, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: Proprietary WIO, 12.8 x 16.5 inch / 32.5 x 41.9 cm
• RoHS Compliant
