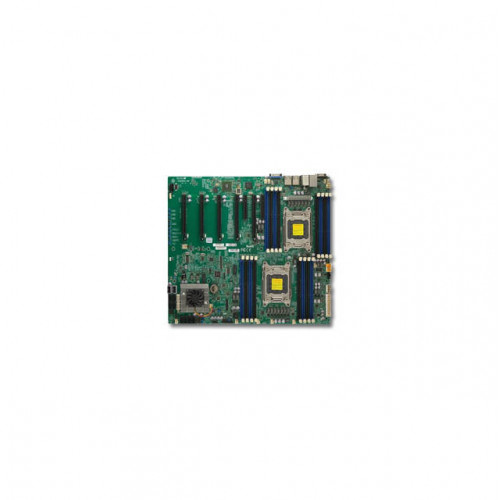

Supermicro X9DRG-QF-B Dual LGA2011/ Intel C602/ DDR3/ SATA3/ V&2GbE/ Proprietary Server Motherboard

Specifications

• Mfr Part Number: X9DRG-QF-B
• CPU: Dual LGA2011
  • Supports Intel Xeon E5-2600 Processors
  • Cache up to 20MB
  • QPI up to 8 GT/s
  • Supports up to 150W TDP
• Chipset: Intel C602
• Memory: 16x 240pin DDR3-1600/1333/1066/800 DIMM Slots; Supports up to 512GB ECC/REG Memory or up to 128GB ECC/Non-ECC Unbuffered Memory
• Slots: 4x PCI-Express 3.0 x16 (double-width) Slots, 2x PCI-Express 3.0 x8 Slots (one in x16), 1x PCI-Express 2.0 x4 Slot (in x8)
• SATA: 2x SATA3 Ports, 8x SATA2 Port, Support RAID 0, 1, 5, 10
• Video: G200 (Renesas SH7757 BMC) Graphics Controller
• LAN: Intel i350 Dual Port Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)
• Ports: 10x USB 2.0 Ports (4 rear, 4 via headers, 2 Type A), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: Proprietary, 15.2 x 13.2 inch / 38.6 x 33.5 cm
• RoHS Compliant
