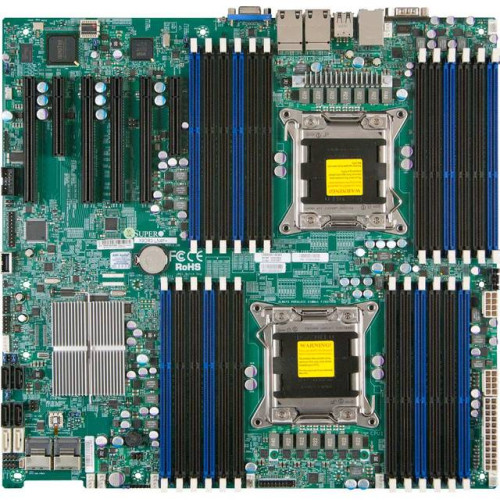

Supermicro X9DR3-LN4F+-B Dual LGA2011/ Intel C606/ DDR3/ SATA3/ V&4GbE/ Enhanced EATX Server Motherboard, Bulk

Specifications

• Mfr Part Number: X9DR3-LN4F+-B
• CPU: Dual LGA2011; Supports Intel Xeon E5-2600 Series Processors; QPI up to 8 GT/s
• Chipset: Intel C606
• Memory: 24x 240pin DDR3-1600/1333/1066/800 DIMM Slots, Supports up to 768GB ECC/REG Memory or up to 128GB ECC/Un-buffered Memory
• Slots: 4x PCI-Express 3.0 x16 Slots; 2x PCI-Express 3.0 x8 Slot (one runs at x4)
• SATA: 4x SATA2 Ports, 2x SATA3 Ports; Supports RAID 0, 1, 5, 10
• SAS: 8x SAS Ports, Supports RAID 0, 1, 10
• Video: Integrated G200 (Nuvoton WPCM450 BMC) Graphics Controller
• LAN: Intel i350 Quad Port Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)
• Ports: 9x USB 2.0 Ports (4 rear, 4 via headers, 1 Type A); 1x VGA Port; 2x Serial Ports (1 rear, 1 via header); 4x RJ45 LAN Ports; 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: Enhanced Extended ATX; 13.68 x 13.00 inch / 34.7 x 33.0 cm

• RoHS Compliant
