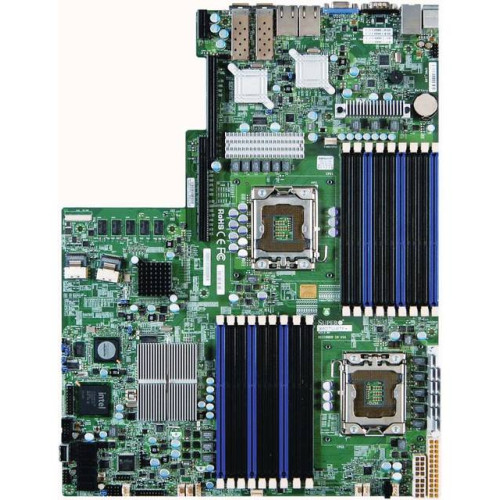

Supermicro X8DTU-6TF+-B Dual LGA1366/ Intel 5520/ DDR3/ V&4GbE/ Proprietary Server Motherboard, Bulk

Specifications

• Mfr Part Number: X8DTU-6TF+-B (BULK)
• CPU: Dual LGA1366
  • Supports up to two Intel 64-bit Xeon 5600 (Westmere) Series / 5500 (Nehalem-EP) Series Processors
  • QPI up to 6.4 GT/s
• Chipset: North Bridge Intel 5520 (Tylersburg) & South Bridge ICH10R + IOH-36D
• Memory: 18x 240pin DDR3-1333/1066/800 DIMM Slots, Supports up to 288GB ECC/REG Memory or up to 48GB ECC/Non-ECC Unbuffered Memory
• Slots:
  • Left Side: 1x PCI-Express 2.0 x16 Slot (by riser card)
  • Right Side: 1x PCI-Express 2.0 x4 Slot (by riser card)
• SATA: 6x SATA2 Ports, Support RAID 0, 1, 5, 10 (Windows), Support RAID 0, 1, 10 (Linux)
• SAS: 8x SAS/SATA 6Gbps Ports, Support RAID 0, 1, 5, 6, 10, 50, 60
• Video: Matrox G200eW Graphics Controller
• LAN: Intel 82599ES Dual-Port 10 Gigabit and Intel 82576 Dual-Port Gigabit Ethernet Controllers; 1x Realtek RTL8201N PHY (dedicated IPMI)
• Ports: 6x USB 2.0 Ports (2 rear, 3 via headers, 1 on-board), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 2x SFP+ LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: Proprietary, 12.8 x 16.5 inch / 32.5 x 41.9 cm
• RoHS Compliant
