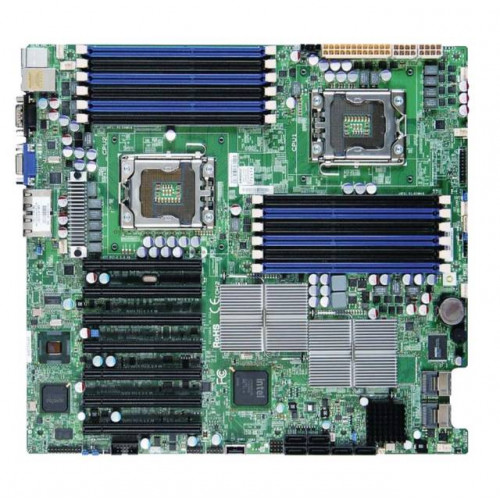

Supermicro X8DTH-IF/ BIOS Dual LGA1366/ Intel 5520/ DDR3/ V&2GbE/ Extended ATX Server Motherboard

Specifications

• Mfr Part Number: X8DTH-IF/ BIOS
• CPU: Dual LGA1366
  • Supports up to two Intel 64-bit Xeon 5600 Series (Westmere)/ 5500 Series (Nehalem-EP) Processors
  • QPI up to 6.4 GT/s
• Chipset: North Bridge Intel 5520 (Tylersburg) & South Bridge ICH10R + 2x IOH-36D
• Memory: 12x 240pin DDR3-1333/ 1066/ 800 DIMMs, Support up to 192GB ECC/REG Memory or up to 48GB ECC/Non-ECC Unbuffered Memory
• Slots: 7x PCI-Express 2.0 x16 Slots (run at x8)
• SATA: 6x SATA2 Ports, Support RAID 0, 1, 5, 10 (Windows), Support RAID 0, 1, 10 (Linux)
• Video: Matrox G200eW Graphics
• LAN: Intel 82576 Dual-Port Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)
• Ports: 8x USB 2.0 Ports (2 rear, 2 on-board, 4 via headers), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x Serial Port, 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: Extended ATX, 12.0 x 13.0 inch / 30.5 x 33.0 cm
• RoHS Compliant
