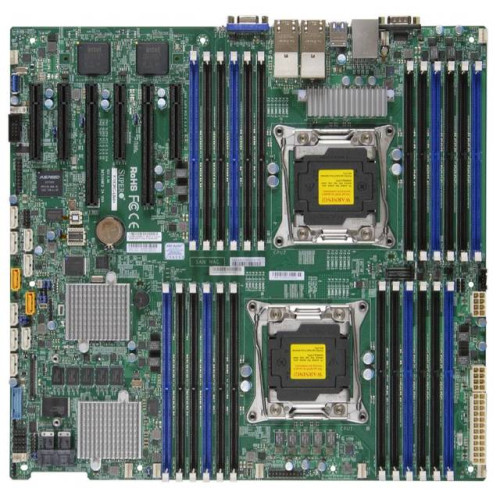

Supermicro X10DRC-LN4+-B Dual LGA2011/ Intel C612/ DDR4/ SATA3&SAS3&USB3.0/ V&4GbE/ Enhanced EATX Server Motherboard

Specifications

• Mfr Part Number: X10DRC-LN4+-B
• CPU: Dual LGA2011
  • Support Intel Xeon E5-2600 v3 Family Processors
  • Support up to 18 Cores
  • Support up to 45MB Cache
  • QPI up to 9.6 GT/s
  • Support up to 145W TDP
• Chipset: Intel C612 Express
• Memory: 24x 288pin DDR4-2133/ 1866/ 1600MHz DIMM Slots, Support up to 1.5TB ECC/Load Reduced Memory or up to 768GB ECC/REG Memory
• Slots: 2x PCI-Express 3.0 x16 Slots, 3x PCI-Express 3.0 x8 Slots, 1x PCI-Express 2.0 x8 Slot (runs at x4)
• SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
• SAS: 8x SAS3 Ports, Support RAID 0, 1, 5, 6, 10, 50, 60
• Video: Aspeed AST2400 BMC Graphics
• LAN: Intel i350 Quad-Port Gigabit Ethernet Controller; 1x Realtek RTL8211E PHY (dedicated IPMI)
• Ports: 3x USB 3.0 Ports (2 rear, 1 Type A), 1x VGA Port, 4x Serial Ports (1 rear, 1 header, 2x Fast UART 16550), 4x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: Enhanced EATX, 13.68 x 13.00 inch / 34.74 x 33.00 cm
• RoHS Compliant
