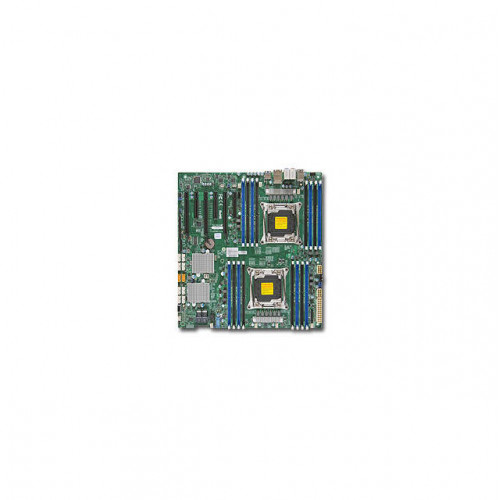

Supermicro X10DAC-O Dual LGA2011/ Intel C612/ DDR4/ SATA3&SAS3&USB3.0/ A&2GbE/ EATX Server Motherboard

Specifications

• Mfr Part Number: X10DAC-O
• CPU: Dual LGA2011
  • Support Intel Xeon E5-2600 v3 Family Processors
  • Support up to 18 Cores
  • Support up to 45MB Cache
  • QPI up to 9.6 GT/s
  • Support up to 160W TDP
• Chipset: Intel C612 Express
• Memory: 16x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Support up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/REG Memory
• Slots: 3x PCI-Express 3.0 x16 Slots, 2x PCI-Express 3.0 x8 Slots, 1x PCI-Express 2.0 x8 Slot (run at x4)
• SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
• SAS: 8x SAS3 Ports, Support RAID 0, 1, 10
• Audio: Realtek ALC888 7.1-Channel High Definition Audio CODEC w/ S/PDIF Header
• LAN: Intel i210 Dual-Port Gigabit Ethernet Controller
• Ports: 6x USB 3.0 Ports (4 rear, 2 via header), 5x USB 2.0 Ports (2 rear, 2 via header, 1 Type A), 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports
• Form Factor: EATX, 12.0 x 13.0 inch / 30.5 x 33.0 cm
• RoHS Compliant
