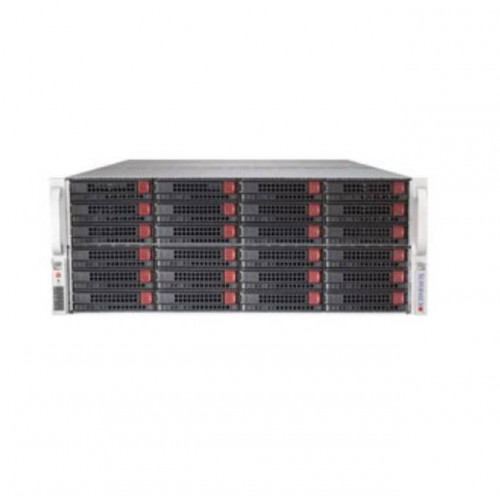

Supermicro SuperStorage Server SSG-6047R-E1R72L Dual LGA2011 1280W 4U Rackmount Server Barebone System (Black)

Specifications

• Mfr Part Number: SSG-6047R-E1R72L
• Motherboard: Super X9DRD-7LN4F-JBOD
• Processor: Dual LGA2011
  • Support Intel Xeon E5-2600 Processors
  • Cache up to 20MB
  • QPI up to 8 GT/s
  • Support up to 135W TDP
• Chipset: Intel C602J
• Memory: 16x 240pin DDR3-1600/ 1333/ 1066/ 800 DIMM Slots, Supports up to 512GB ECC/REG Memory or up to 128GB ECC/Unbuffered Memory
• Slots: 4x PCI-Express 3.0 x8 Slots (Low-profile)
• SATA: 2x SATA3 Ports, 4x SATA2 Ports, Support RAID 0, 1, 5, 10
• SAS: 8x SAS2 Ports
• Video: G200 (Renesas SH7757 BMC) Graphics
• LAN: Intel i350 Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)
• Drive Bays: 72x 3.5" SAS2/SATA3 in 36x (24 front + 12 rear) Hot-swap Drive Bays (2x HDD per bay w/ LEDs for each drive), 2x 2.5" Fixed Drive Bays (Internal Drive Bracket Suppports)
• Backplane: SAS2/SATA3 Single Expander per Backplane
• Ports: 9x USB 2.0 Ports (4 rear, 4 via headers, 1 Type A), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 4x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: 4U Rackmount
• Power Supply: 1280W 80 PLUS Platinum Certified High-Efficiency (95%+) Power Supply w/ Digital Switching Control & PMBus 1.2
• System Cooling: 7x 9cm Hot-swap Redundant Cooling Fans
• Front Panel:
  • Buttons: Power On/Off, System Reset
  • LEDs: Power Status, Hard Drive Activity, 2x Network Activity, System Overheat, Power Fail
• Color: Black
• Dimensions (WxDxH): 17.2 x 35.0 x 7.0 inch / 437.0 x 889.0 x 178.0 mm
• Weight: 67.0 lbs / 30.4 kg
• RoHS Compliant
