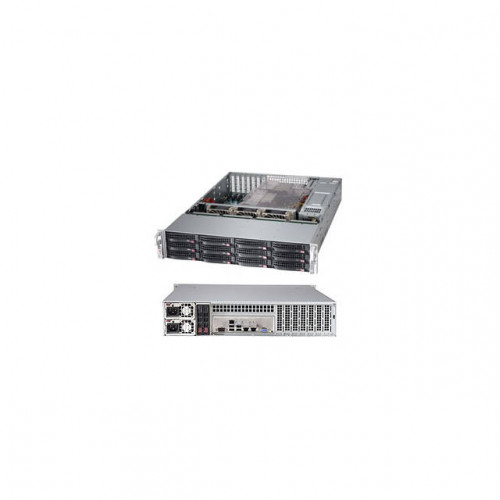

Supermicro SuperStorage Server SSG-6027R-E1R12T Dual LGA2011 920W 2U Rackmount Server Barebone System (Black)

Specifications

• Mfr Part Number: SSG-6027R-E1R12T
• Motherboard: Super X9DRH-7TF
• Processor: Dual LGA2011
  • Support Intel Xeon E5-2600 and E5-2600 v2 Processors
  • Cache up to 30 MB
  • QPI up to 8 GT/s
  • Support up to 130W TDP
• Chipset: Intel C602
• Memory: 16x 240pin DDR3-1866/ 1600/ 1333/ 1066/ 800 DIMM Sockets; Supports up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/REG Memory or up to 128GB ECC/Unbuffered Memory
• Slots: 1x PCI-Express 3.0 x16 Slot; 6x PCI-Express 3.0 x8 Slots
• SATA: 2x SATA3 Ports (via AHCI), Support RAID 0, 1; 4x SATA2 Ports (via AHCI), Support RAID 0, 1, 5, 10, 4x SATA2 Ports (via SCU), Support 0, 1, 10
• SAS: 8x SAS2 Ports, Support RAID 0, 1, 5, 6, 10, 50, 60
• Video: Matrox G200eW Graphics
• LAN: Intel X540 Dual Port 10Gb Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)
• Drive Bays: 12x Hot-swap 3.5" SAS/SATA HDD Trays
• Backplane: SAS2/SATA3 Backplane
• Ports: 7x USB 2.0 Ports (4 rear, 2 via header, 1 Type A), 2x Serial Ports (1 rear, 1 via header), 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: 2U Rackmount
• Power Supply: 920W 80 PLUS Platinum Certified high-efficiency (94%+) AC-DC Redundant Power Supplies with PMBus and I2C
• System Cooling: 3x 80mm 9.5K RPM, 4-pin PWM Fans
• Front Panel:
  • Buttons: Power On/Off, System Reset
  • LEDs: Power status, Hard drive activity, 2x Network Activity, System Overheat, Power fail
• Color: Black
• Dimensions (WxDxH): 17.2 x 25.5 x 3.5 inch / 437.0 x 648.0 x 89.0 mm
• Gross Weight: 61.0 lbs / 27.7 kg
• RoHS Compliant
