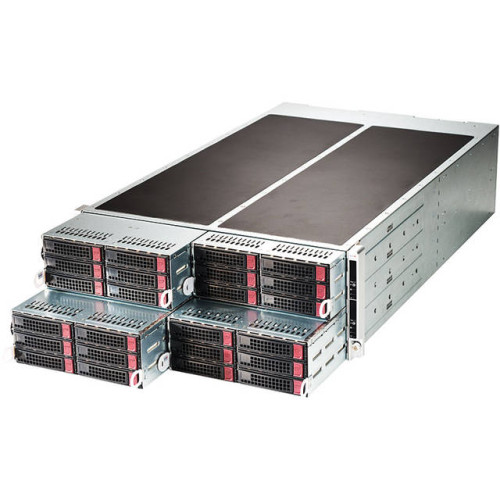

Supermicro SuperServer SYS-F627R3-R72B+ Four Node Dual LGA2011 1280W 4U Rackmount Server Barebone System (Black)

Specifications

• Mfr Part Number: SYS-F627R3-R72B+
• Motherboard: Super X9DRFR
• Processor per Node: Dual LGA2011
  • Support Intel Xeon E5-2600 and E5-2600 v2 Family Processors
  • Cache up to 30MB
  • QPI up to 8 GT/s
  • Support up to 135W TDP; 130W TDP up to 47°C
• Chipset per Node: Intel C602
• Memory per Node: 16x 240pin DDR3-1866/ 1600/ 1333/ 1066/ 800 DIMM Slots, Supports up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/REG Memory or up to 128GB ECC/Unbuffered Memory
• Slots per Node: 1x PCI-Express 3.0 x16 Slot (Low-profile) + 1 Micro Low-profile
• SATA per Node: 2x SATA3 Ports (via AHCI), Support RAID 0, 1; 4x SATA2 Ports (via AHCI), Support RAID 0, 1, 5, 10; 2x SATA2 Ports (via SCH), Support RAID 0, 1, 10
• SAS per Node: 8x SAS2 ports, Support RAID 0, 1, 5, 6, 10, 50, 60
• Video per Node: Matrox G200eW Graphics
• LAN per Node: Intel i350 Dual Port Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)
• Drive Bays per Node: 8x 3.5" Hot-swap SAS2/SATA HDD Trays
• Backplane per Node: 1x SAS2/SATA Backplane
• Ports per Node: 2x USB 2.0 Ports, 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: 4U Rackmount
• Power Supply: 1280W 80 PLUS Platinum Certified Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
• System Cooling: 2x 8cm 11k RPM Middle Fans
• Front Panel:
  • Buttons: Power On/Off, System Reset
  • LEDs: Power Status, Hard Drive Activity, 2x Network Activity, System Overheat, Power fail
• Color: Black
• Dimensions (WxDxH): 17.63 x 29.00 x 6.96 inch / 448.0 x 737.0 x 177.0 mm
• Weight: 105.0 lbs / 47.63 kg
• RoHS Compliant
