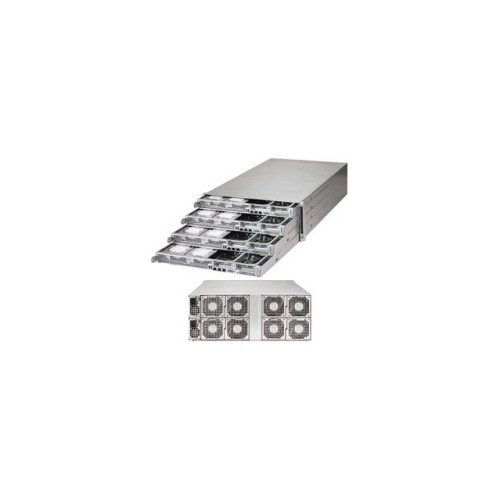

Supermicro SuperServer SYS-F617H6-FTL+ Four Node Dual LGA2011 1620W 4U Rackmount Server Barebone System (Black)

Specifications

• Mfr Part Number: SYS-F617H6-FTL+
• Motherboard: Super X9DRFF-7G+
• Processors per Node: Dual LGA2011
  • Support Intel Xeon E5-2600 Processors
  • Cache up to 20MB
  • QPI up to 8 GT/s
  • Support up to 135W TDP
• Chipset per Node: Intel C602
• Memory per Node: 16x 240pin DDR3-1600/ 1333/ 1066/ 800 DIMM Slots; Supports up to 512GB ECC/REG Memory or up to 128GB ECC/Unbuffered Memory
• Slots per Node: 1x PCI-Express 3.0 x8 Slot (Low-profile, via riser card), 1x PCI-Express 2.0 x4 Slot (Low-profile, via riser card)
• SATA per Node: 2x SATA3 Ports (via AHCI), Support RAID 0, 1; 4x SATA2 Ports (via AHCI), Support RAID 0, 1, 5, 10
• SAS per Node: 8x SAS2 Ports, Support RAID 0, 1, 10
• Video per Node: Matrox G200eW Graphics
• LAN per Node: Intel i350 Dual Port Ethernet Controller; 1x Realtek RTL8201F PHY (dedicated IPMI)
• Drive Bays per Node: 8x 3.5" Fixed SAS/SATA HDD Trays, 4x 3.5" Fixed SATA HDD Trays
• Ports per Node: 3x USB 2.0 Ports (2 rear, 1 Type A), 1x VGA Port, 1x Serial Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: 4U Rackmount
• Power Supply: 1620W 80 PLUS Platinum Certified High-efficiency Redundant Power Supply w/ PMBus
• System Cooling: 8x 8cm Heavy Duty Fans w/ Air Shroud and PWM Fan Speed Control
• Front Panel:
  • Buttons: Power On/Off, System Reset
  • LEDs: Power Status, 2x Network Activity, System Overheat, Power Fail
• Color: Black
• Dimensions (WxDxH): 17.63 x 35.00 x 6.96 inch / 448.0 x 889.0 x 177.0 mm
• Weight: 200.0 lbs / 90.71 kg
• RoHS Compliant
