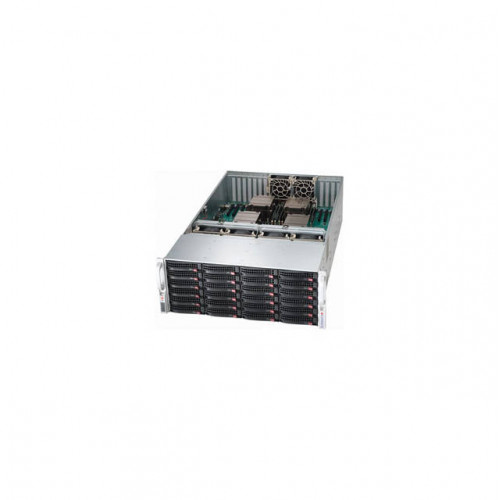

Supermicro SuperServer SYS-8047R-7JRFT Quad LGA2011 1620W 4U Rackmount/Tower Server Barebone System (Black)

Specifications

• Mfr Part Number: SYS-8047R-7JRFT
• Motherboard: Super X9QR7-TF-JBOD
• Processor: Quad LGA2011
  • Support Intel Xeon E5-4600 Processors
  • Cache up to 20MB
  • QPI up to 8 GT/s
• Chipset: Intel C602
• Memory: 24x 240pin DDR3-1600/1333/1066/800 DIMM Slots, Supports up to 768GB ECC/REG Memory
• Slots: 8x PCI-Express 3.0 x16 Slots (one runs at x8)
• SATA:
  • AHCI SATA: SATA3 Support RAID 0, 1; SATA2 Support RAID 0, 1, 5, 10

  • SCU SATA: SATA2 Support RAID 0, 1, 10

• SAS: SAS2 via Dual LSI 2308 (IT mode)

• Video: Matrox G200 (Nuvoton WPCM450 BMC) Graphics

• LAN: Intel X540 Dual Port 10-Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)

• Drive Bays: 24x 3.5" Hot-swap Hard Drive Bays

• Backplane: SAS/SATA HDD Backplane

• Ports: 10x USB 2.0 Ports (4 rear, 4 via headers, 2 Type A), 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port

• Form Factor: 4U Rackmount / Tower

• Power Supply: 1620W 80 PLUS Platinum Certified High-efficiency Redundant Power Supply w/ PMBus

• System Cooling: 4x 92mm RPM Hot-Swappable Cooling Fans, 2x 80mm RPM Hot-Swappable Rear Exhaust Fans, 1x Air Shroud (MCP-310-84805-0B)

• Color: Black

• Dimensions (WxDxH): 17.2 x 29.0 x 7.0 inch / 437.0 x 737.0 x 178.0 mm

• Weight: 60.0 lbs / 27.2 kg
• RoHS Compliant
