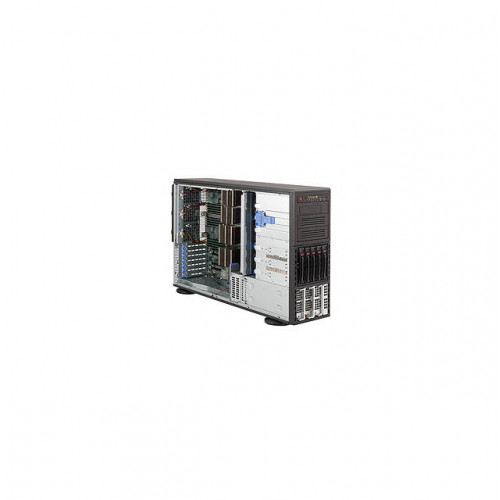

Supermicro SuperServer SYS-8046B-TRLF Quad LGA1567 1400W 4U Rackmount/Tower Server Barebone System (Black)

Specifications

• Mfr Part Number: SYS-8046B-TRLF
• Motherboard: Super X8QBE-LF
• Processor: Quad LGA1567
  • Supports up to Four Intel Xeon 64-bit Processors
  • Supports Intel Xeon 7500 Series Processors (Eight-Core, Codename Nehalem-EX)

  • Supports Intel Xeon E7-4800 Family Processors (Ten-Core, Codename Westmere-EX)

  • QPI up to 6.4 GT/s

• Chipset: North Bridge Intel 7500 (Boxboro-EX) & South Bridge ICH10R

• Memory: 32x 240pin DDR3-1333/1066/800 DIMM Slots, Support up to 1024GB ECC/REG Memory

• Slots: 2x PCI-Express 2.0 x16 Slots or 1x PCI-Express 2.0 x16 Slot + 1x PCI-Express 2.0 x8 Slot+ 2x PCI-Express 2.0 x4 Slots or 3x PCI-Express 2.0 x8 Slots + 2x PCI-Express 2.0 x4 Slots

• SATA: SATA2, Supports RAID 0, 1, 5 (Windows), Supports RAID 0, 1(Linux)

• Video: Matrox G200eW Graphics Controller w/ 16MB DDR2 Video Memory

• LAN: Intel 82576 Dual Port Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)

• Drive Bays: 5x 3.5" Hot-swap Hard Drive Bays, 3x 5.25" Peripheral Drive Bays

• Backplane: SAS/SATA HDD Backplane (SAS support requires optional SAS controller)

• Ports: 5x USB 2.0 Ports (2 rear, 3 via header), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x Dedicated IPMI LAN Port

• Form Factor: 4U Rackmount / Tower

• Power Supply: 1400W 80 PLUS Gold Certified Redundant High-efficiency Power Supply w/ PMBus

• System Cooling: 3x 92mm RPM Hot-Swappable Cooling Fans, 3x 80mm RPM Hot-Swappable Rear Exhaust Fan, 1x Air Shroud
• Color: Black
• Dimensions (WxDxH): 7.0 x 28.4 x 17.8 inch / 178.0 x 721.0 x 452.0 mm
• Weight: 65.5 lbs / 29.7 kg
